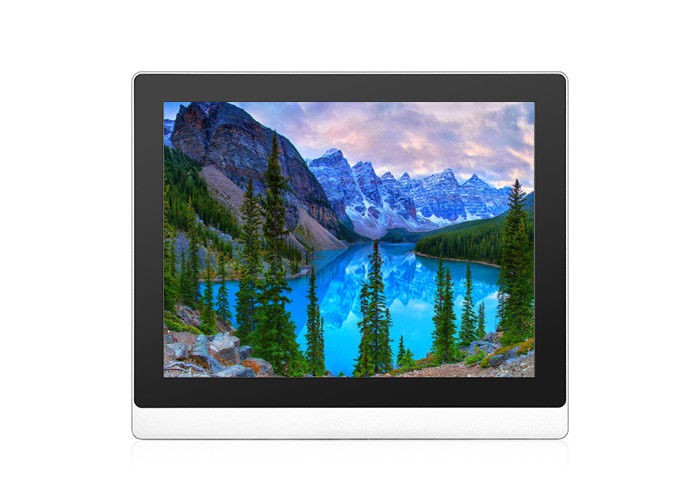

Ultra narrow Bezel 8 Inch Industrial High Resolution Touch Panel PC
Features
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Anti-EMI, corrosion resistance, excellent performance of heat dissipation.
3. High performance motherboard, 7x24 continuous operation
4. Optional: Starting up logo, higher resolution, high brightness(1000nits or higher) wide view angle(178°/178°/178°/178°).
5. Optional: Wide temperature(-20-70℃), super wide temperature(-30-85℃), anti-glare, anti-vandal, light sensor.
Product line
Specification
| Model: SC08 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2xUSB 2.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 8" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 20.1x17.65x4.28cm |
| Packing size | 43x38x18cm |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Other | |
| Mounting way | Wall mounting bracket (optional) |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Drawing
Application
Robotics
Ticket machine
Sorting machine
Out fare turnstile gates
Face recognition system
Packaging inspection equipment
