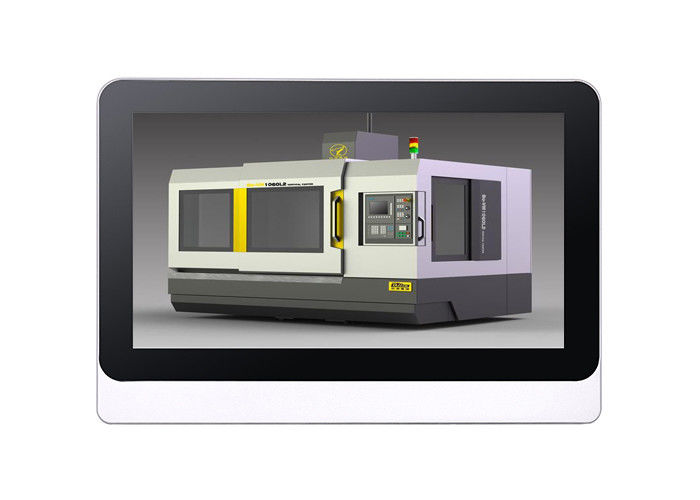

Industrial Capacitive Touch Screen Monitor 10.1 Inch Frameless Flat Panel Dustproof

Industrial Capacitive Touch Screen Monitor 10.1 Inch Frameless Flat Panel Dustproof

capacitive touch screen monitor

multi touch screen monitor

Place of Origin:

China(Mainland)

Brand Name:

SHINHO

Certification:

CE, FCC, RoHS

Model Number:

SL101

Contact Us

Request A Quote
Product Details
Product Name:
10.1 Inch Industrial Touch Screen Monitor
Material:
Aluminum Alloy
Resolution:
1366*768
View Angle:
85°/85°/85°/85° (R/L/U/D)
Touch Type:
10 Points Capactive Touch
Brightness:
300 Cd/㎡
Voltage:
DC 12V
Warranty:
12months
Product Description


                                10.1 Inch Frameless Flat Panel Industrial Capcacitive Touchscreen Monitor


Features

1. Free bezel design, front IP65 dustproof and waterproof.
2. Anti-EMI, corrosion resistance, excellent performance of heat dissipation.
3. High performance motherboard, 7x24 continuous operation
4. Optional: Starting up logo, higher resolution, high brightness(1000nits or higher) wide view angle(178°/178°/178°/178°).
5. Optional: Wide temperature(-20-70℃), super wide temperature(-30-85℃), anti-glare, anti-vandal, light sensor.

Product line

Industrial Capacitive Touch Screen Monitor 10.1 Inch Frameless Flat Panel Dustproof 0

Specification



                                                                   Model: SL101
LCD panel
Panel size 10.1"
Resolution 1366*768
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 300+
Contrast ratio 800:1
View angle 85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤15W
Enclosure
Material Aluminum Alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity Operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 1.8kg
Gross weight 3.3kg
Product Dimension 26.14*18.54*5.1cm
Packing size 40*35*16cm
Accessories Power adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card
Other
Mounting Way Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS


Drawing


Industrial Capacitive Touch Screen Monitor 10.1 Inch Frameless Flat Panel Dustproof 1



Application


SCADA

Ticket machine

Sorting machine


CNC automation equipment

Packaging inspection equipment


Automatic testing equipment for packaging bottles


Pictures


Industrial Capacitive Touch Screen Monitor 10.1 Inch Frameless Flat Panel Dustproof 2

Industrial Capacitive Touch Screen Monitor 10.1 Inch Frameless Flat Panel Dustproof 3
