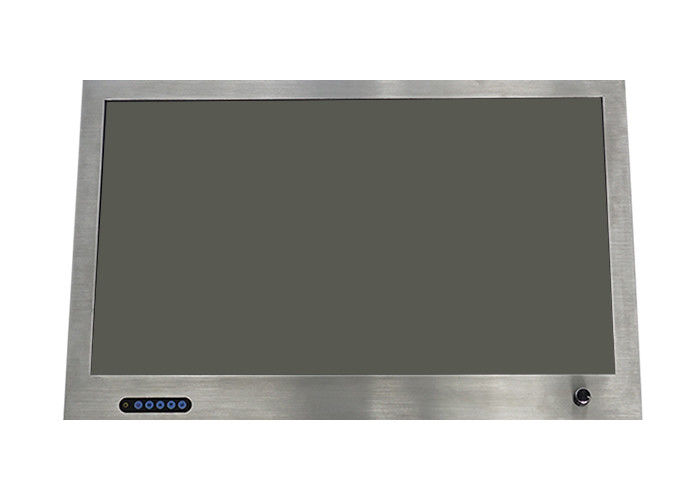

24'' Stainless Steel Monitor Enclosure Front IP65 Waterproof With Brightness Control Button

24'' Stainless Steel Monitor Enclosure Front IP65 Waterproof With Brightness Control Button

computer monitor enclosure

industrial touch screen monitor

Place of Origin:

China(Mainland)

Brand Name:

SHINHO

Certification:

CE, FCC, RoHS

Model Number:

SL24

Contact Us
Request A Quote
Product Details
Product Name:
24 Inch High Brightness Monitor
Material:
Stainless Steel
Resolution:
1920*1080
View Angle:
80°/80°/80°/80° (R/L/U/D)
IP Grade:
Front IP65 Waterproof
Brightness:
1000 Cd/㎡
Brightness Control:
Manual Button Dimmer
Warranty:
12months
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Delivery Time
20 working days for sample, 15-25 working days for bulk
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description



Stainless Steel Enclosure 24 Inch Front IP65 Waterproof Monitor With Brightness Control Button



Features

1. Front panel IP65 waterproof, robust and durable stainless steel enclosure.
2. FHD 1920*1080, high brightness 1000 nits, sunlight readable. Cover with 3MM tempered glass for vandalproof.
3. With a dimmer on the bezel to adjust the brightness, can adjust the brightness from 100% to 0.
4. High performance industrial grade mainboard, 7x24 continuous operation.
5. VGA+HDMI+DVI interfaces, 12V Phoenix terminal.
6. Support wall mounting, embedded mounting, desk stand mouting etc.

Specification

                                                                    Model:SL24
LCD panel
Panel size 24"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Brightness control Dimmer
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Singal Ports
VGA 1xVGA
HDMI 1xHDMI
DVI 1xDVI
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption <40 W
Enclosure
Material Stainless steel case
Color Silver
VESA mounting 100x100 mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, storage: -20 to 70°C
Relative humidity Operating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight 9 kg
Gross weight 11.5 kg
Product Dimension 58.6×31.98×3.7 cm
Packing size 69x50x19 cm
Accessories Power adapter, power cord, HDMI cable, 12V Phoenix terminal cable, embedded screws
Other
Mounting (options) 1) Embedded screws
2) Wall brackets for wall-mounting, VESA 100×100 mm
3) Stable metal holder to support the monitor
Warranty 1 year warranty



Application



Metro Station


Pharmaceutical



Boat Navigation



Marinetime use



Soil testing machine



Pictures



24'' Stainless Steel Monitor Enclosure Front IP65 Waterproof With Brightness Control Button 0

24'' Stainless Steel Monitor Enclosure Front IP65 Waterproof With Brightness Control Button 1

24'' Stainless Steel Monitor Enclosure Front IP65 Waterproof With Brightness Control Button 2

24'' Stainless Steel Monitor Enclosure Front IP65 Waterproof With Brightness Control Button 3
