Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SC215
Silver Front IP65 Waterproof Dustproof 21.5'' HD Resolution Industrial Touch Panel PC For Factory
Features
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4.21.5'' 1920*1080 resolution Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
6. High performance motherboard, 7x24 continuous operation.
7. Support wall mounting, desk stand, embedded mounting.
8. 4 COM optional, RS232/RS422/RS485 optional.
Pictures
Specification
| Model: SC215 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |

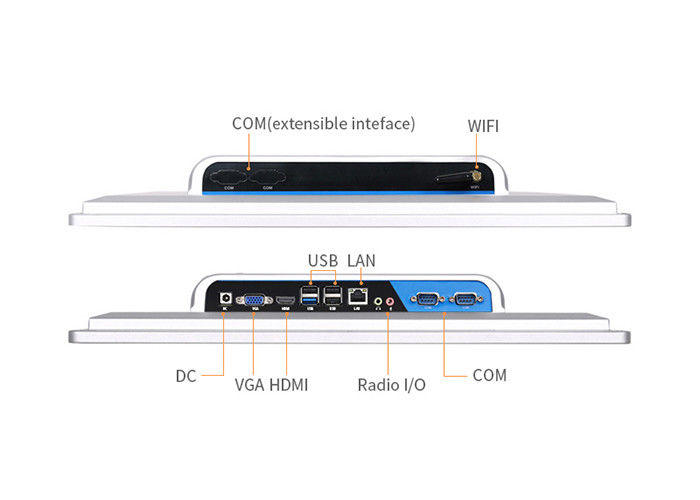

| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( capacitive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 6.7kg |
| Gross weight | 7.7kg |
| Product Dimension | 52.19x33.84x6.25cm |
| Packing size | 73x45x19cm |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Other | |
| Mounting (options) | wall mounting brackets (optional) |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Drawing
Application
Factory automation
Self service equipment
Paying kiosk
cnc plasma machine
car testing mechine
Multi-Product Dispensing Machine
