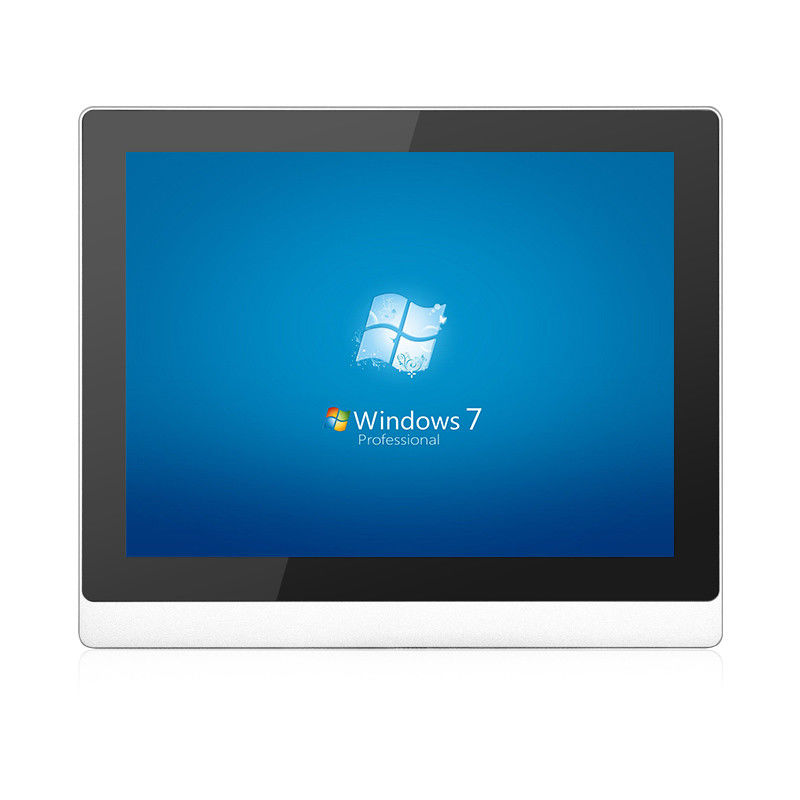

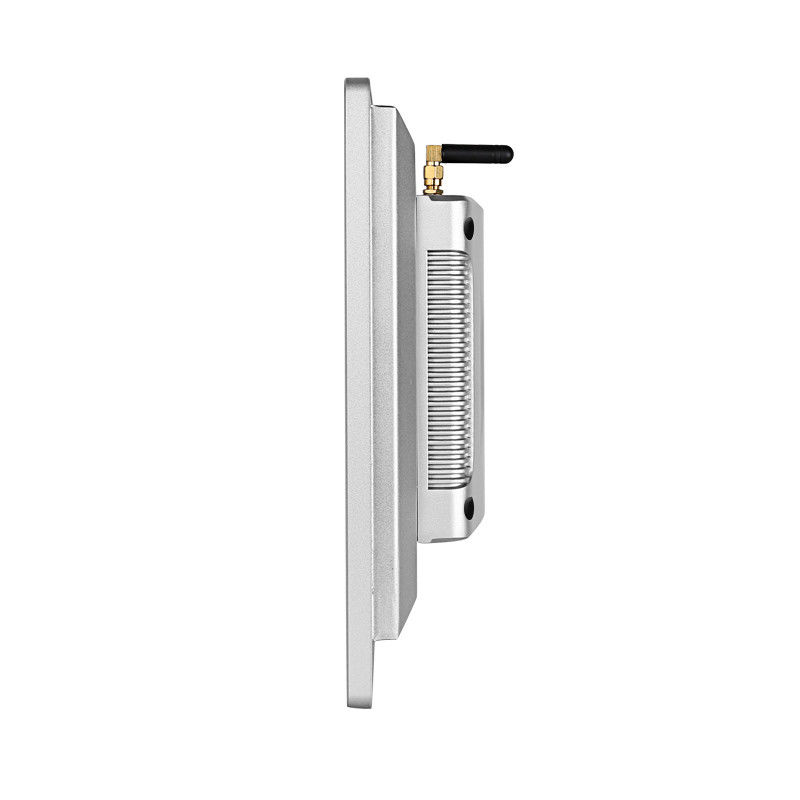

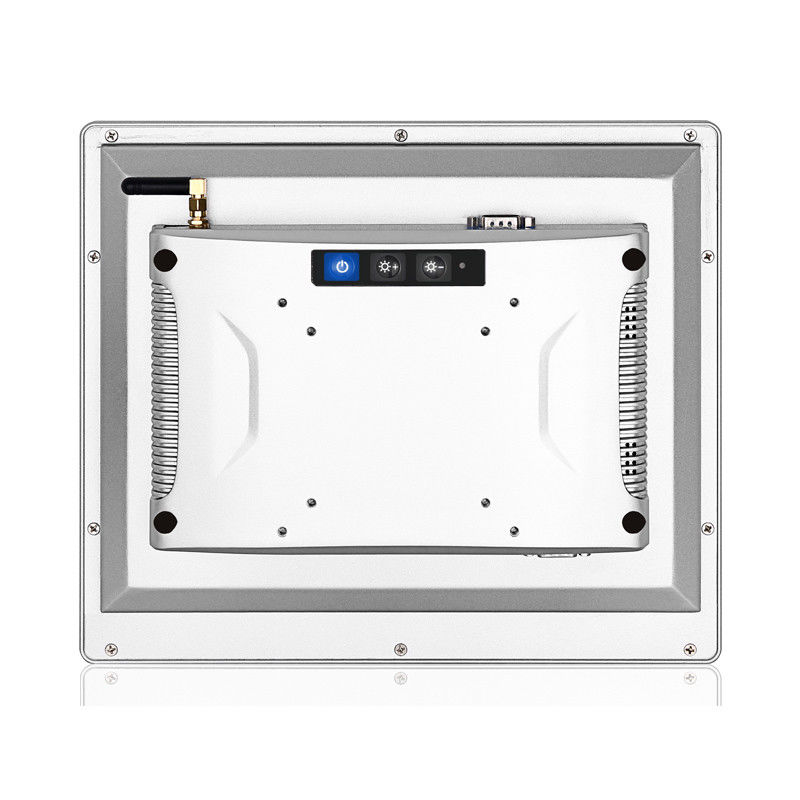

Multi - Points PCAP Industrial Touch Panel PC 2mm Tempered Glass For Vandalproof

Multi - Points PCAP Industrial Touch Panel PC 2mm Tempered Glass For Vandalproof

industrial touch panel computer

flat panel computer

Place of Origin:

China(Mainland)

Brand Name:

Sihovision

Certification:

CE, FCC, RoHS

Model Number:

SC104

Contact Us
Request A Quote
Product Details
Product Name:
10.4 Inch Touch Panel PC
Material:
Aluminum Alloy
Resolution:
1024*768
View Angle:
80°/80°/80°/80° (R/L/U/D)
Touch Type:
10 Points Capacitive Touch Or 5-Wire Resistive Touch
IP Grade:
Front IP65 Waterproof
Working Voltage:
12-24V
Warranty:
12months
Type:
Panel PC
Products Status:
Stock
Cpu:
J1900
Brightness:
400cd/m2
Storage:
32G/64G/128G/256G SSD
Memory:
2GB/4GB/8GB
Operating System:
Windows 7/8/10/linux/Ubuntu
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description


10.4 Inch Adopt multi-points PCAP Touch Screen Panel PC with 2mm tempered glass for vandalproof

Features



1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Support wall mounting, desk stand, embedded mounting.
8. 3 COM optional, RS232/RS422/RS485 optional.


Specification



Model: SC104
PC
CPU Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3 (4G, 8G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G, 128GB, 256GB
HDD: 500GB, 1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 2xUSB 2.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size 10.4"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options (5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver, Black, white, color can be customized
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 3.3kg
Gross weight 3.8kg
Product Dimension 25.94x22.47x5.08cm
Packing size 43x38x18cm
Accessories Power adapter, power cord, user manual, warranty card
Other
Mounting way wall mounting bracket (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificate CE, FCC, RoHS



Drawing
Multi - Points PCAP Industrial Touch Panel PC 2mm Tempered Glass For Vandalproof 0

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
