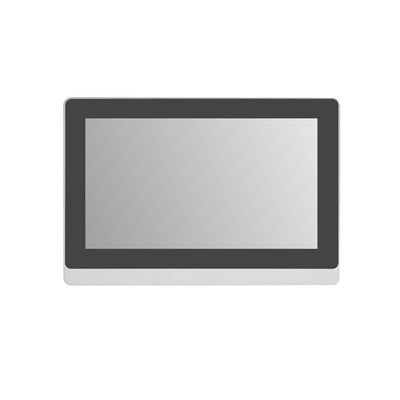

1080p Industrial Embedded Android Panel Pc 11.6 Inch 400cd/m2 With SD/SIM Card Slot
Product Details
| Product Name | 11.6 Inch Android Tablet Pc | Products Status | Stock |
|---|---|---|---|
| Cpu | A64 | Operation System | Android 6.0 |
| Memory | 2GB | Storage | 8GB |
| Resolution | 1920*1080 | Brightness | 400cd/m2 |
| Material | Aluminum Alloy | View Angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch Type | 10 Points Capacitive Touch Or 5-Wire Resistive Touch | Type | Panel PC |
| IP Grade | Front IP65 Waterproof | Working Voltage | 12-24V |
| Warranty | 12months | ||
| High Light | rugged android tablet,industrial grade tablets |
||
Product Description
11.6 inch 1080p industrial embedded android panel pc with SD/SIM card slot
Features
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole tablet PC is dustproof.
2. Full flat panel aluminum alloy brushed, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, full viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. With wifi, bluetooth.
Specification
| Model: SC116A | |
| PC | |
| CPU | A64, Cortex-A53, Quad-core, 1.5GHz |
| Memory | 2GB DDR3 |
| Storage | 8GB EMMC |
| Decoding Resolution | HDMI support 4K |
| Operation System | Android 6.0 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | Ethernet, Bluetooth, WIFI, (4G, 3G optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| DC | 1xDC 12V |
| USB | 1xUSB, 1xUSB(HOST) |
| Micro USB | 1xMicro USB(OTG) |
| Card Slot | 1xSD/TF card slot, 1xSIM card slot |
| HDMI | 1xHDMI , support 1080p |
| LAN | 1xRJ45, 10M/100M adaptive ethernet |
| Audio | 1x Audio I/O |
| COM | 2xCOM |
| LCD panel | |
| Panel size | 11.6" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 300 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm, 100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -10°C to 60°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5-85% (non-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 2.6 kg |
| Gross weight | 3.1 kg |
| Product dimension | 30.59x21.12x4.88 cm |
| Packing size | 40x34x17 cm |
| Accessories | Power adapter, power cord, warranty card, user manual |
| Other | |
| Mounting way | wall mounting bracket (optional) |
| desk stand holder (optional) | |
| Customization (optional) | 3G, 4G, Webcam, RFID reader etc. optioanal |
| Warranty | 1 year warranty |
Drawing
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
