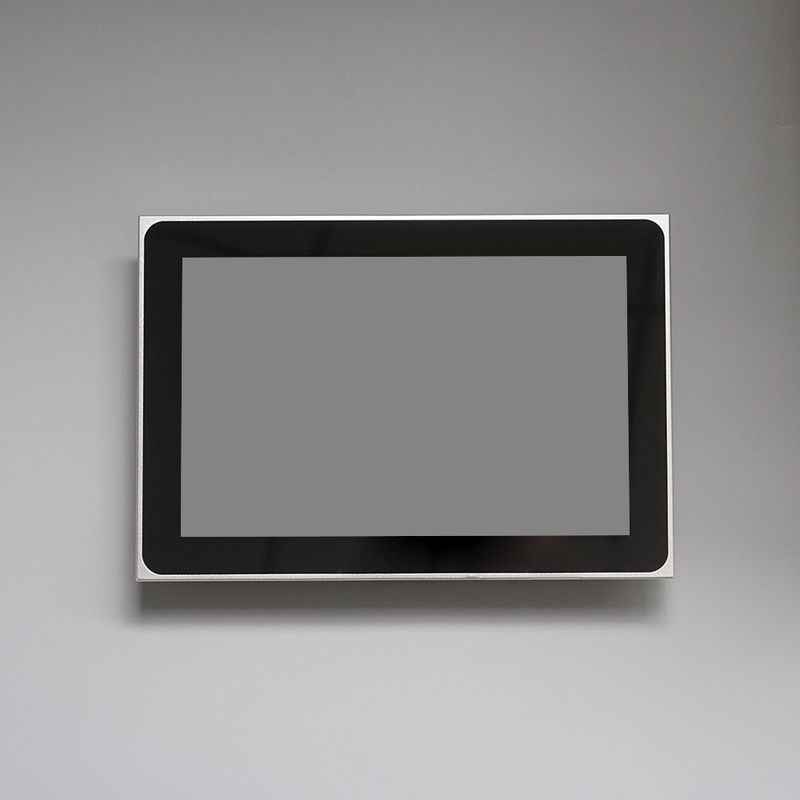

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1''

Brand Name:	Sihovision
Model Number:	SL101
MOQ:	1 Piece
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, Paypal, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE,FCC, RoHS

Product Name:

10.1 Inch Open Frame Lcd Monitor

Products Status:

Stock

Resolution:

1920 X 1200

Screen Size:

10.1"

Interface:

VGA,HDMI, DVI

Brightness:

400 Nits

Response Time:

5ms

Touch Type:

Resistive Touch Or Capacitive Touch

Touch Points:

10 Points

Viewing Angle:

80/80/80/80(L/R/U/D)

Material:

Aluminum Alloy Frame

Power Supply:

DC 12V(AC 100-240V 50/60Hz)

Warranty:

1 Years

Highlight:

capacitive touch screen monitor

multi touch screen monitor

Product Description

Features:

1. Front bezel aluminum alloy brushed metal craft,seamless design.
2. Industrial LCD panel, full viewing angle, high nits, true color. high resolution:1920*1200
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.

Specification

Model:SL101
LCD panel
Panel size	10.1"
Resolution	1920*1200
Aspect ratio	16:10
Support Color	16.7M colors
Brightness (cd/m²)	400+
Contrast ratio	1000:1
View angle	89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points )
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA	1×VGA
DVI	1×DVI
HDMI	1×HDMI
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 24V
Power consumption	≤35W
Enclosure
Material	aluminium alloy bezel+High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA mounting	75×75mm
Operating Environment
Temperature Range	operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	1.5kg
Gross weight	2kg
Product Dimension	26.14×17.9×3.22cm
Packing size	303010cm
Accessories	power cord,HDMI cable, USB touch cable,embedded screws,
Other
Mounting	open frame
	embedded mounting screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Drawing

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1'' 0

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1'' 1

High Resolution Capacitive Touch Monitor , Open Frame Touchscreen Monitor 10.1'' 2

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
