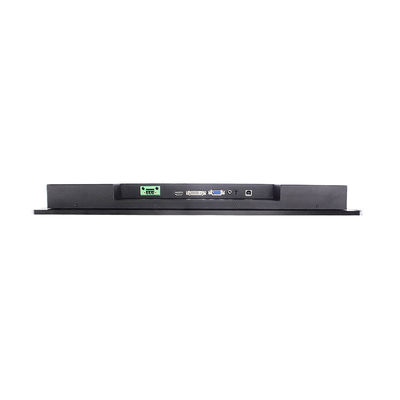

Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5''

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL215
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal
Product Details
Product Name 21.5 Inch Industrial Resistive Touch Monitor Products Status Stock
Material Aluminum Alloy Resolution 1920*1080
Brightness 400+ Cd/m2 Contrast Ratio 3000:1
Interface VGA,DVI,HDMI Response Time 2ms
View Angle 89°/89°/89°/89° (R/L/U/D) Type Touch Screen Monitor
Touch Type 4-Wire Resistive Touch Color Black
Power Supply DC 12V(AC 100-240V 50/60Hz) Application Desktop,monitor,Embedded,banana Pi,VESA Mount
Warranty 12months
High Light

resistive touch screen monitor

,

5 wire resistive touch screen

Leave a Message
Product Description

OEM 21.5 Inch Resistive Touch Screen Monitor Cheap 22 Inch USB LCD Touch Screen Monitors



Features


1. Robust and durable Brushed aluminum alloy bezel +High strength cold rolled steel back case, shockproof, excellent heat dissipation .
2. Industrial LCD panel, high brightness, low energy consumption
3. Adopt 5 wire resistive touch panel , stable, durable, anti-interference.
4. High performance mainboard, 7x24 continuous operation.
5. Suitable for various kinds of severe environment.

Specification

Model:SL215
LCD panel
Panel size 21.5"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400 nits
Contrast ratio 3000:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 75-85%
Surface Hardness 3H
Working Life >35 million times
Touch options ( PCAP touch optional)
Singal Ports
HDMI 1×HDMI
VGA 1×VGA
DVI 1×DVI
AV optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption 25 W
Enclosure
Material aluminium alloy front bezel +High strength cold rolled steel back case
Color Black, white, Silver , color can be customized
VESA mounting 75×75/ mm100×100 mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight 4kg
Gross weight 5.5kg
Product Dimension 56.4x35.6x4.8cm
Packing size 74×45×19 cm
Accessories Power adapter, HDMI/USB cable
Other
Mounting (options) 1) provide wall brackets for wall-mounting, VESA 100×100 mm
2) provide stable metal holder to support the monitor
Warranty 1 year warranty





Drawing
Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5'' 0



Package

Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5'' 1



Certifications

Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5'' 2



OEM & ODM



Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5'' 3



About Shinho Electronic
Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5'' 4


Application

Aluminum Alloy Resistive Touch Monitor , USB LCD Touch Screen Monitors 21.5'' 5
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
