10 Points Capacitive Industrial Touch Panel PC 7'' Support 9-24V Wide Voltage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 7 Inch Capacitive Touch Panel Pc | Type | Panel Pc |
---|---|---|---|
Products Status | Stock | Cpu | J1900/i3/i5 |
Memory | 2GB/4GB/8GB | Storage | 32G/64G/128G/256G SSD |
Resolution | 1024*600 | Brightness | 400+ Cd/m2 |
Interface | COM, VGA, USB, HDMI | Response Time | 5ms |
View Angle | 80°/80°/80°/80° (R/L/U/D) | Lan | 2x10/100/1000Mbps RJ45 LAN |
Wifi | 802.11a/b/g/n | Material | Aluminium Alloy |
Color | Black | Touch Screen | Projected Capacitive Multi Touch |
Operating System | Windows 7/8/10/linux/Ubuntu | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
Warranty | 12months | ||
High Light | industrial touch panel computer,flat panel computer |

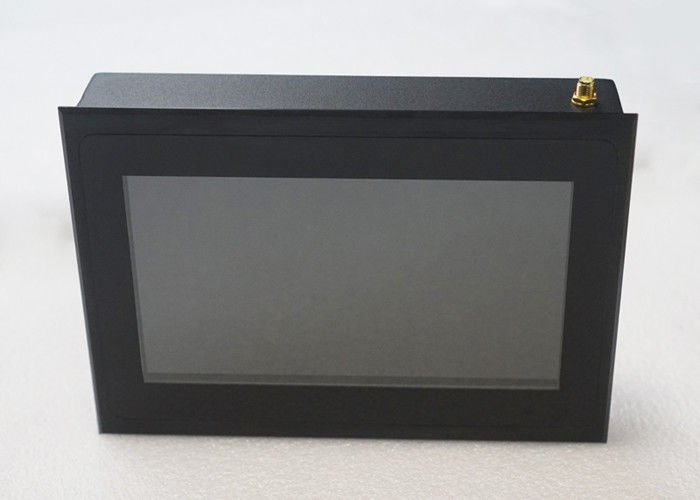

7 inch 10 points capacitive touchscreen panel pc, support 9 to 24V wide voltage
Features
1. Front bezel aluminum alloy brushed metal craft+ aluminum alloy heat sink,shakeproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10-points capacitive touch screen , cover with tempered glass for vandal proof
4. High performance motherboard, 7x24 continuous operation.
5. 9-24V wide voltage support.
Specification
Model:SC07 | |
PC | |
CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
Chipset | Intel ValleyView SSA-CUnit |
Memory | 2G DDR3 (4G optional) |
Hard Drive Capacity | 32G SSD |
Hard Drive Optional | SSD: 64G,128GB,256GB |
HDD: 500GB,1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI optional |
I/O Interface | 3×USB 2.0,1×USB 3.0, 4 x COM RS232 |
1×VGA/HDMI/2×RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
LCD panel | |
Panel size | 7" |
Resolution | 1024*600 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 400+ |
Response time | 5ms |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 points capacitive touch |
Touch Interface | USB (RS232 optional) |
Touch response time | <8ms |
Luminousness | 90% |
Surface Hardness | 3H |
Working Life | >35 million times |
Touch options | ( capacitive touch, IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | 9-24V wide voltage |
Power consumption | ≤45W |
Enclosure | |
Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
Color | Silver , Black, white, color can be customized |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 2.2kg |
Gross weight | 2.5kg |
Product Dimension | 19.5*13.7*4cm |
Packing size | 40*33*15cm |
Accessories | Power adapter,embedded screws,driver CD,touch pen |
Other | |
Mounting (options) | embedded mounting screws |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Certificates | CE,FCC,RoHS |
Warranty | 1 year warranty |
