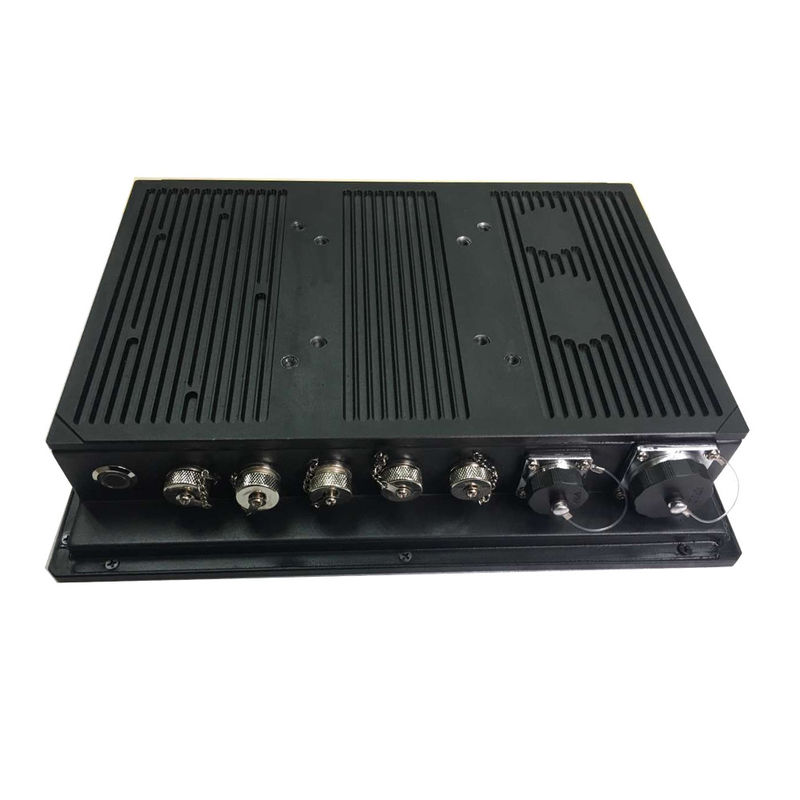

5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SC12W
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 12 Inch Industrial Touch Screen Computer Type Panel Pc
Products Status Stock Cpu J1900
Memory 2GB/4GB/8GB Storage 32G/64G/128G/256G SSD
Resolution 1024x768 Brightness 1000+ Cd/m2
Interface COM, VGA, USB, HDMI Response Time 2ms
View Angle 80°/80°/80°/80° (R/L/U/D) Lan 10/100/1000Mbps RJ45 LAN
Wifi 802.11a/b/g/n Material Aluminium Alloy
Color Black Touch Screen 5 Wire Resistive Touch
Operating System Windows 7/8/10/linux/Ubuntu Power Supply DC 12V(AC 100-240V 50/60Hz)
Warranty 12months
High Light

industrial all in one pc touch screen

,

industrial touch panel computer

Leave a Message
Product Description

12 inch fanless design 5 wires resistive touch panel pc industrial touch screen computer



Features


1. Sturdy and durable aluminum Alloy front bezel + High strength cold rolled steel back case.
2.Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof , sunlight readable.

Specification



Model:SC12W
PC
CPU Intel® celeron J1900, 2.0GHz, quad core, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, (4G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network Onboard Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI optional
I/O Interface 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 12"
Resolution 1024x768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits,sunlight readable
Response time 10ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Surface Hardness 3H
Luminousness 90%
Touch Interface USB
Touch response time 2ms
Working Life >35 million times
Touch options (10 point capacitive touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage 12V (9-36V wide voltage optional)
Power consumption ≤25W
Enclosure
Material Aluminum Alloy front bezel + High strength cold rolled steel back case
Color Black( white, Silver , color can be customized )
VESA mounting 100×100mm
IP-grade IP65
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 5.5KG
Gross weight 7KG
Product Dimension 30.36×22.77×5.7cm
Packing size 43×39×19 cm
Accessories Power adapter,waterproof VGA/RS232/LAN/USB cable,touch driver,touch pen
Other
Mounting (options) 1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Warranty 1 year warranty









Drawing



5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless 0



Package

5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless 1



Certifications

5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless 2



OEM & ODM



5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless 3



About Shinho Electronic
5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless 4


Application

5 Wires Resistive Touch Panel Pc , Industrial Touch Screen Computer 12 Inch Fanless 5
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
