Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC17W

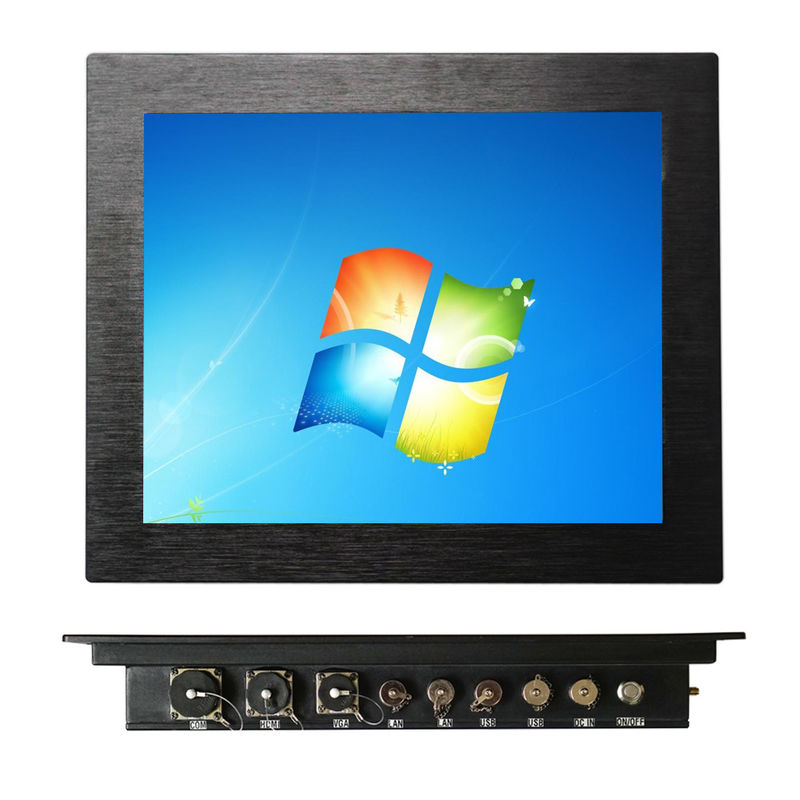

17 inch customized panel pc high precision 5 wires resistive touch embedded industrial pc
Features
1. Sturdy and durable aluminum Alloy front bezel + High strength cold rolled steel back case.
2.Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof , sunlight readable.
Specification
| Model:SC17W | |
| PC | |
| CPU | Intel® celeron J1900, 2.0GHz, quad core, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3, (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA, 1xHDMI |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280x1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (10 point capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 9-24V wide voltage |
| Power consumption | ≤30 W |
| Enclosure | |
| Material | Aluminum Alloy front bezel + High strength cold rolled steel back case |
| Color | Black( white, Silver , color can be customized ) |
| VESA mounting | 100×100mm |
| IP-grade | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7.5KG |
| Gross weight | 9.2KG |
| Product Dimension | 40.2×33.1×5.97 cm |
| Packing size | 55×46×19 cm |
| Accessories | Power adapter,waterproof VGA/HDMI/RS232/LAN/USB cable,touch driver,touch pen |
| Other | |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
