Core I5 Cpu Industrial Touch Screen Pc1000 Nits Stainless Steel 15 Inch 1024*768

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SC15W
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal
Product Details
Product Name 15 Inch Stainless Steel Computer Type Panel Pc
Products Status Stock Cpu I5-3337U
Memory 4GB Storage 64G
Resolution 1024*768 Brightness 1000+ Cd/m2
Interface 4*USB+2*LAN+1*RS232 Response Time 10ms
View Angle 80°/80°/80°/80° (R/L/U/D) Network Realtek RTL 8111E/wifi
Material Aluminium Alloy IP-grade Full IP65 Waterproof
Color Silver Touch Screen 10 Point Capacitive Touch
Operating System Windows 7/8/10, Linux, Ubuntu, Debian Etc. Power Supply DC 12V(AC 100-240V 50/60Hz)
Warranty 12months
High Light

industrial panel mount pc

,

fanless all in one pc

Leave a Message
Product Description

15 inch high performance core i5 cpu industrial computer 1000 nits sunlight readable stainless steel panel pc
Features

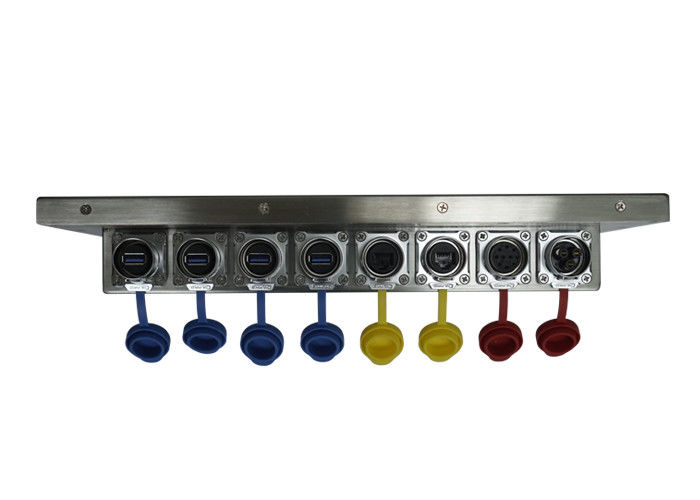

1. IP65 sealed stainless steel enclosure including I/O,Sealed I/O with cable set included.
2.Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 points PCAP touch panel , high sensitive and fast-response .
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof , 1000 nits,sunlight readable.

Specification


Model:SC15W
PC
CPUIntel® core i5-3337U,dual core,1.8 GHz ,fanless
Memory4G DDR3, (2G ,8G optional)
Hard Drive Capacity64G SSD
Hard Drive OptionalSSD: 32G,128GB,256GB
HDD: 500GB,1TB
GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
NetworkOnboard Realtek RTL 8111E Gigabit Ethernet controller
Wireless NetworkWIFI
I/O Interface4*USB+2*LAN+1*RS232
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size15"
Resolution1024x768
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)1000 nits,sunlight readable (400 nits optional)
Response time10ms
Contrast ratio1000:1
View angle80/80/80/80 (R/L/U/D)
Touch panel
Touchscreen Type10 point capacitive touch
Touch InterfaceUSB (RS232 optional)
Touch response time<8ms
Luminousness90%
Surface Hardness7H
Working Life>50 million times
Touch options( 5 wire resistive touch optional)
Power Supply
External Power SupplyAC 100 - 240V
Working voltage12V (9-36V wide voltage optional)
Power consumption≤45W
Enclosure
Materialstainless steel case
ColorSilver
VESA mounting75×75mm/100×100mm
IP-gradeFull IP65 waterproof
Operating Environment
Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight7KG
Gross weight9KG
Product Dimension35.65×28.35×5.6cm
Packing size48×44×19 cm
AccessoriesPower adapter,waterproof RS232/LAN/USB cable,power cord
Other
Mounting (options)1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
CertificatesCE,FCC,RoHs
Warranty13 months warranty



Package
Core I5 Cpu Industrial Touch Screen Pc1000 Nits Stainless Steel 15 Inch 1024*768 0

Certifications
Core I5 Cpu Industrial Touch Screen Pc1000 Nits Stainless Steel 15 Inch 1024*768 1

OEM & ODM

Core I5 Cpu Industrial Touch Screen Pc1000 Nits Stainless Steel 15 Inch 1024*768 2

About Shinho Electronic
Core I5 Cpu Industrial Touch Screen Pc1000 Nits Stainless Steel 15 Inch 1024*768 3
Application
Core I5 Cpu Industrial Touch Screen Pc1000 Nits Stainless Steel 15 Inch 1024*768 4
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
