1680x1050 Resolution Resistive Touch Monitor 22 Inch Wide Viewing Display With Dimmer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 22inch Resistive Touch Monitor | Products Status | Stock |
|---|---|---|---|
| Resolution | 1680*1050 | Screen Size | 22" |
| Interface | VGA, HDMI, DVI | Brightness | 1000+ Nits |
| IP Grade | Front Panel IP65 Waterproof | Viewing Angle | 80°/80°/80°/80° (R/L/U/D) |
| Material | Aluminum Alloy Frame | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
| Widescreen | Yes | Panel Type | TFT |
| Color | Black | Application | Embedded/desktop/wall Mount |
| Warranty | 1 Years | ||
| High Light | touch screen display monitor,resistive touch screen monitor |
||
Product Description

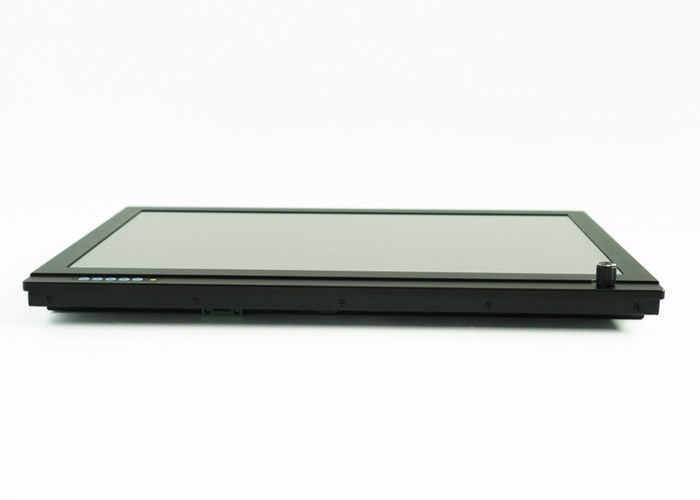

22inch resistive touch monitor 1680x1050 resolution wide viewing display with dimmer
Features:
1. Material: aluminium alloy bezel+metal back case.
2. Industrial 22'' LCD panel, 1680*1050 resolution, wide viewing angle, high nits, true color.
3. Adopt 5 wire resistive touch panel, stable, durable, anti-interference.
4. High brightness 1000 nits, sunlight readable.
5. with dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
6. High performance mainboard, 7x24 continuous operation.
7. VGA+HDMI+DVI interfaces, USB for touch.
8. Support wall mounting, embedded mounting, desk stand mouting etc.
Specification
| Model:SL22 | |
| LCD panel | |
| Panel size | 22" |
| Resolution | 1680*1050 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (capacitive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 7kg |
| Gross weight | 9kg |
| Product Dimension | 52.37*37.29*4cm |
| Packing size | 74*45*19cm |
| Accessories | Power adapter, power cord, HDMI cable, USB touch cable, embedded screws |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
