Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC15A
Contact Us

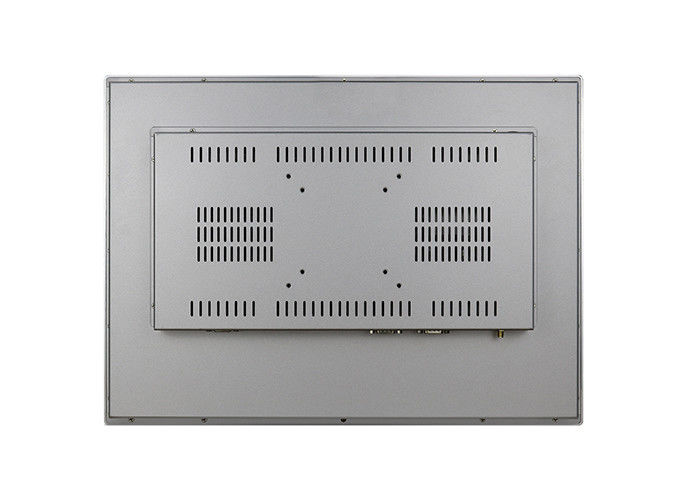

15 inch industrial computer Android 8.0 touch screen with fingerprint recognition
Features
1. Robust and durable aluminium alloy enclosure, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 point capacitive touch screen, high precision, durable, anti-interference
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and rackmount etc. apply to a wide range of industrial application.
6.With 2 mega-pixel webcam with night vision, RFID reader, Fingerprint recognition, Body sensors, WiFi, light sense, microphone and speaker.
Picture detail
Specification
| Model: SC15A | |
| PC | |
| CPU | RK3399, 2.0 Ghz |
| Memory | 2gb, up to 4gb |
| Storage | 8gb, up to 128gb, support TF Card expansion |
| Decoding Resolution | Support 1080P |
| Operation System | Android 8.0, Android 7.1 |
| WiFi | Support,2.4G~5G, 802.11 b/g/n |
| Ethernet | 10/100/1000M |
| 4G | Support ,LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM Optional |
| Bluetooth | Optional |
| GPS | Support, -159dBm, 1575.42MHz, Optional |
| Front Camera | Front Camera 200W Support 800W, Optional |
| I/O Interfaces | |
| USB | 2xUSB ( up to 5 ), OTG USBx1 |
| COM | 1RS232, Optional with 3RS232,1RS485 |
| LAN | 1xRJ45 |
| HDMI | 1xHDMI , support 1080p |
| DC | 1xDC |
| Card Slot | 1xTF Card, 1xSim Slot |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 300+ cd/m² |
| Response time | <2ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Touch Panel | 3MM,7H Hardness, Optional with Anti Glare Coating |
| Working Life | More than 50 Million |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V4A, Optional with 9~36V |
| Power consumption | Less than 25W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Galvanized Steel, Power Coating |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | 0°~60° C |
| Storage temperature | -10°C to 60°C |
| Relative humidity | 5-85% (npn-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 4.8 kg |
| Gross weight | 5.8 kg |
| Product dimension | 37.9x30x6.3 cm |
| Packing size | 47x43x18 cm |
| Accessories | Power adapter, embedded screws, warranty card, user manual |
| Other | |
| Mounting way | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Package
Certifications
OEM & ODM
About Shinho Electronic
Application
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
