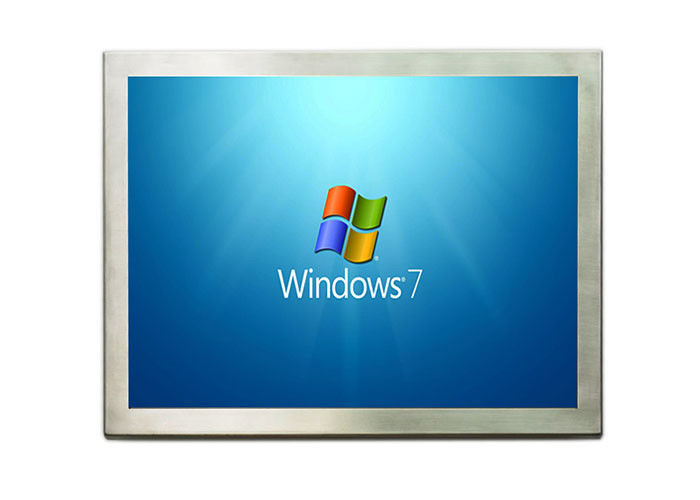

17 Inch Stainless Steel Panel PC Touch With Glove / 4MM Tempered Glass

All Category

Smart Portable Screen

Mrs. Amy Liu

info@sihovision.com

0086 13798532807

Amy

Contact Now

All Category

17 Inch Stainless Steel Panel PC Touch With Glove / 4MM Tempered Glass

Brand Name:	Sihovision
Model Number:	SC17W
MOQ:	1 Piece
Price:	Negotiable
Payment Terms:	T/T , Paypal , L/C, D/A , D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen , China

Certification:

CE , FCC , RoHS

Product Name:

Full IP67 Waterproof Stainless Steel Computer

CPU:

Intel 3855U CPU, Fanless

RAM:

4G DDR4

Hard Disk:

64G SSD

Touchscreen Type:

10 Point Capacitive Touch

Resolution:

1280*1024

Aspect Ratio:

4:3

IP Grade:

FULL IP67 Waterproof

Highlight:

17 Inch Stainless Steel Panel PC

Tempered Glass Stainless Steel Panel PC

Product Description

With 4MM Tempered glass 17 inch Stainless Steel PPC touch with glove

Feature

1. IP67 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference. EETI waterproof solution, support touch with glove.
4. Fanless design.
5. High performance motherboard, 7x24 continuous operation.
6. Support jet washing.
7. With 4MM Tempered glass for vandal-proof.
8. IP67 Aluminum power adapter.
Specification

Model:SC17W
PC
CPU	Intel® Celeron 3855U Dual core 1.6GHz, fanless
Chipset	Intel ValleyView SSA-CUnit
Memory	4G DDR4 (2G, 8G Optional)
Hard Drive Capacity	64G SSD(M2)
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI(Optional)
I/O Interface	3USB+2RS232+1*LAN/DC Input
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size	17"
Resolution	1280*1024
Aspect ratio	5:4
Support Color	16.7M colors
Brightness (cd/m²)	400+
Response time	5ms
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	10 points capacitive touch
Touch solution	EETI
Touch Interface	USB (RS232 optional)
Touch response time	<8ms
Luminousness	90%
Surface Hardness	7H
Working Life	>50 million times
Touch options	(5 wires resistive touch)
Power Supply
External Power Supply	AC 100-240V
Working voltage	DC 12V
Power consumption	≤45W
Enclosure
Material	Stainless steel case
Color	Silver
VESA mounting	75x75mm/100x100mm
IP grade	Full IP67 waterproof
Operating Environment
Temperature Range	Operating: -20 to 70°C, storage: -20 to 80°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight	8 kg
Gross weight	10 kg
Product Dimension	39.1x32.9x6.0 cm
Packing size	53×45×18 cm
Accessories	Waterproof power adapter, power cord, waterproof RS232/LAN/USB cable
Other
Mounting way	Wall mounting brackets
Mounting way	Desk stand holder (Optional)
Warranty	1 year warranty
Certificate	CE, FCC, RoHS

More Pictures
17 Inch Stainless Steel Panel PC Touch With Glove / 4MM Tempered Glass 0

Drawing

Welcome to send inquiry, we also have other sizes.
