Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC07

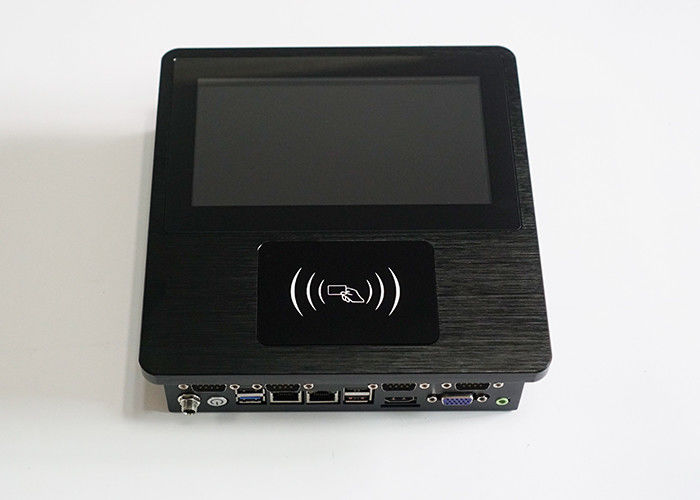

Built In RFID And 3G 4 COM RS232 Industrial LCD Panel PC Ubuntu Systems
Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, desk stand, embedded mounting.
6. 4 COM RS232, RS422/RS485 optional.
7. Built in RFID and 3G.
Specification
| Model: SC07 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| 3G | |
| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 4xCOM RS232, 2x RJ45,1x SIM Slot |
| 1xVGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 75°/75°/70°/75° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤20W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 19.837x20.79x5.78cm |
| Packing size | 43x38x18cm |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Other | |
| RFID | Build in RFID |
| Mounting way | wall mounting bracket (optional) |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
