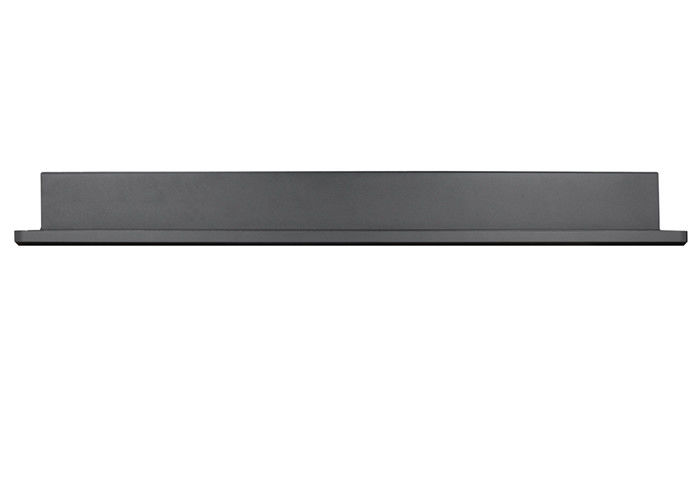

64G SSD 10 Points 32" PCAP Touch LCD Screen IP66
Product Details
| CPU | J1900 | RAM | 4GB DDR3 |
|---|---|---|---|
| Hard Drive | 64G SSD | Operation System | Windows 7/8/10 |
| Panel Size | 32" | Resolution | 1920*1080 |
| View Angle | 80°/80°/80°/80° (R/L/U/D) | IP Grade | Full IP66 Waterproof |
| Color | Black | Warranty | 1 Year Warranty |
| High Light | 32" PCAP Touch LCD Screen,IP66 PCAP Touch LCD Screen,64G SSD Waterproof Panel PC |
||
Product Description
Memory 4G 64G SSD 10 Points PCAP Touch Industrial LCD Screen IP66 Waterproof Panel PC
Features
1. Made of sturdy and durable aluminum Alloy front bezel+304 Stainless steel back case.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Fully sealed and fanless design, full IP66 waterproof, Sealed I/O with cable set included.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance motherboard, fanless design, 7x24 continuous operation.
Specification
| Model:SC32W | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (2G, 8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 1xUSB 2.0,1xUSB 1.0, 1xCOM RS232, 1xRJ45 |
| 1xHDMI/POWER DC 24V | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 32" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 (1000 nits, sunlight readable optional) |
| Response time | 5ms |
| Contrast ratio | 1400:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 24V |
| Power consumption | ≤55W |
| Enclosure | |
| Material | Aluminum Alloy front bezel+304 Stainless steel back case |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 100x100mm/200x200mm |
| IP grade | Full IP66 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | TBD |
| Gross weight | TBD |
| Product Dimension | 82.9x52.3x9cm |
| Packing size | TBD |
| Accessories | Power adapter, waterproof HDMI/ RS232/LAN/USB cable, power cord |
| Other | |
| Mounting (options) | wall mounting brackets |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
After-Sales Service:
1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the first year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units,
for replacing the defective product. The number of spare units depends on the
quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team via Service hotlike. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
FAQ:
1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.
3)What payment methods does your company accept?
T/T,Western Union,Paypal and secure payment on alibaba.
4)What’s the delivery time?
Sample:5-7 working days.bulk order 15-25 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
5)What are the shipping ways?
We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
