Sunlight Readable 35W 15in Industrial LCD Touch Monitor 1000 Nits

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL15
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details 53*47*20cm/8kgs/1pc
Delivery Time 5-10 working days for sample, 15-25 working days for bulk
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 50000 pcs/month
Product Details
Product Name Stainless Steel Industrial Monitor Color Silver
Material 316 Stainless Steel Resolution 1024*768
View Angle 80°/80°/80°/80° (R/L/U/D) Surface Hardness 7H
Warranty 12months
High Light

15in Industrial LCD Touch Monitor

,

35W Industrial LCD Touch Monitor

,

1000 Nits Sunlight Readable LCD Monitor

Leave a Message
Product Description

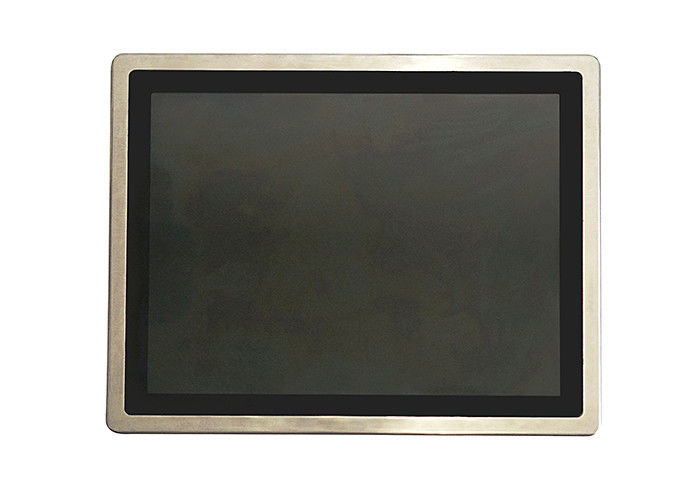

-20 To 70°C 1000 Nits Sunlight Readable 15" Industrial LCD Touch Monitor



Feature

1. Robust and durable 316 stainless steel enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.
2. 15'' Industrial LCD panel, 1000 nits. sunlight readable.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 3mm tempered glass for vandal-proof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5. Optical boding.
6. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
7. High performance mainboard, 7x24 continuous operation.
8. Wide voltage support: 9V-36V.



Specification

Model: SL15
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 cd/m², sunlight readable
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Customization Covered 3mm tempered glass
Signal Ports
VGA 1x VGA
HDMI 1x HDMI
DVI optional
Audio in/out optional
OSD in the front bezel
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage 9V-36V
Power consumption 35W
Enclosure
Material 316 Stainless steel
Color Silver
VESA mounting 100x100mm
IP grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity operating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight 6 KG
Gross weight 7 KG
Product Dimension 36.47*38.9*5.8cm
Packing size 48x45x19 cm
Accessories IP65 waterproof Power adapter, waterproof VGA/HDMI/USB touch cable
Other
Mounting VESA mounting
embedded mounting screws (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS



Drawing

Sunlight Readable 35W 15in Industrial LCD Touch Monitor 1000 Nits 0





Application



Shopping Mall


Super Market


Smart home


Metro station


Compang


Hospital


Airport


Restaurant


Automobile 4S stores



Automatic pay station machine



Packaging testing equipment



Parking lot self-service payment machine
