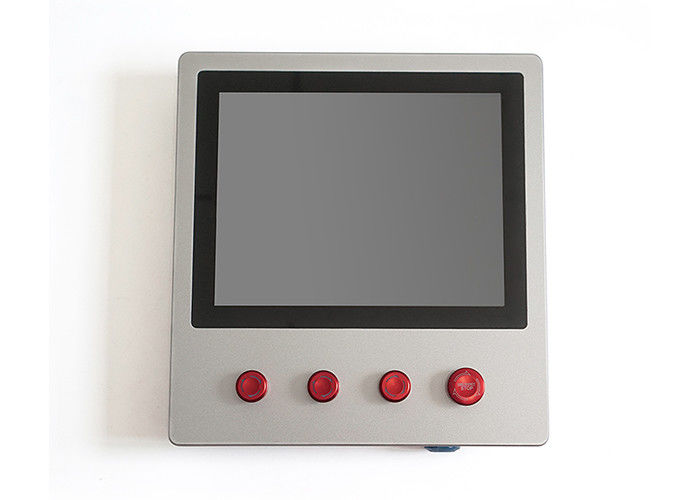

300nits 1024x768 IP65 Industrial Lcd Display Monitor 3 Buttons

Place of Origin Shenzhen,China
Brand Name Sihovision
Certification CE,FCC, RoHS
Model Number SL121W
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details 46.5x43x18 cm 6.5kg
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability 5000 Pieces Per Month
Product Details
Product Name Industrial LCD Monitor Products Status Stock
Resolution 1024*768 Screen Size 12"
Interface HDMI, VGA, USB Or RS232 Brightness 300nits
IP Grade Full IP65 Waterproof Viewing Angle 80°/80°/80°/80° (R/L/U/D)
Material Aluminium Alloy Front Bezel + High Strength Cold Rolled Steel Back Case Temperature Range Operating: -20 To 70°C, Storage: -30 To 80°C
Power Supply DC 12V(AC 100-240V 50/60Hz) Application Desktop/wall Mount
Warranty 1 Years
High Light

1024x768 Industrial Lcd Display Monitor

,

IP65 Industrial Lcd Display Monitor

,

300nits 3 Buttons Touch Monitor

Leave a Message
Product Description

-20°C to 70°C wide temperature lcd screen display IP65 industrial monitor with 3 buttons for control

Key Features:



1. Robust and durable, all-metal enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.
2. 12.1'' Industrial LCD panel.
3. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
4. High performance mainboard, 7x24 continuous operation.
5. Interfaces: HDMI, 3xUSB or RS232 for RFID.
3x Buttons for control, red green, yellow.



Specification



Model:SL121W
LCD panel
Panel size 12.1"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300 nits (1000nits, sunlight readable Optional)
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type No Touch
Touch options (10points capacitive touch, or 5 wires restive touch optional)
Singal Ports
HDMI 1x HDMI
VGA 1x VGA
RS232 3x USB or RS232 for RFID
Buttons 3x Buttons for control, red green, yellow
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤30W
Enclosure
Material aluminium alloy front bezel + High strength cold rolled steel back case
Color Black, white, Silver, color can be customized
VESA mounting 100x100 mm
IP-grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity operating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight 3.3kg
Gross weight 6.25 kg
Product Dimension 32.2x34.2x6 cm
Packing size 46.5x43x18 cm
Accessories Power adapter, Waterproof Power cord, Waterproof HDMI/USB cable, Wall mount
Other
Mounting (options) 1) wall brackets for wall-mounting, VESA 100×100 mm
2) stable metal holder to support the monitor
Warranty 1 year warranty




300nits 1024x768 IP65 Industrial Lcd Display Monitor 3 Buttons 0300nits 1024x768 IP65 Industrial Lcd Display Monitor 3 Buttons 1




Products line:
300nits 1024x768 IP65 Industrial Lcd Display Monitor 3 Buttons 2
Certifications
300nits 1024x768 IP65 Industrial Lcd Display Monitor 3 Buttons 3

OEM & ODM

300nits 1024x768 IP65 Industrial Lcd Display Monitor 3 Buttons 4



Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
