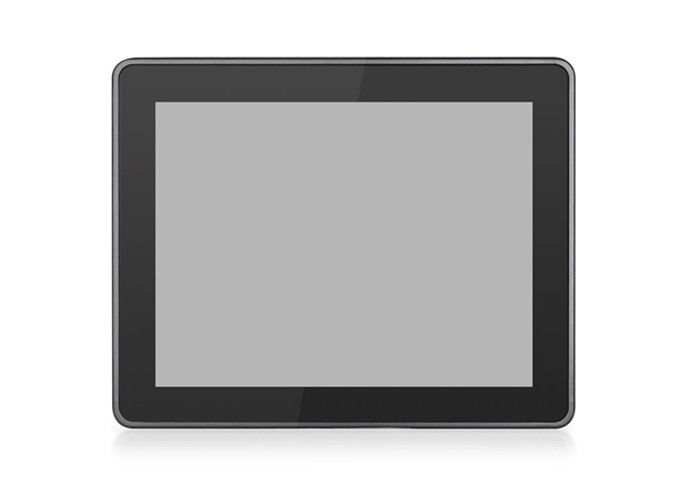

10.4" 1024*768 Aluminum Industrial Touch Monitor 12-24V

10.4" 1024*768 Aluminum Industrial Touch Monitor 12-24V

10.4" Aluminum Industrial Touch Monitor

1024*768 Aluminum Industrial Touch Monitor

24V Embedded Touch Pc Monitor

Place of Origin:

China(Mainland)

Brand Name:

Sihovision

Certification:

CE, FCC, RoHS

Model Number:

SL104

Contact Us
Request A Quote
Product Details
Product Name:
Embedded Industrial Displays
Color:
Balck
Material:
Aluminum Alloy
Resolution:
1024*768
View Angle:
80°/85°/85°/80° (R/L/U/D)
Signal Ports:
VGA/ DVI/ HDMI
Brightness:
300 Cd/m2
IP Grade:
Front Panel IP65 Waterproof
Working Voltage:
AC 100 - 240V , 50-60Hz
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description

Feature
1. Fully enclosed design, the whole monitor is dustproof.
2. 5MM circular arc Narrow Bezel, seamless design, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. EMI/ EMC standard Anti-electromagnetic interference.
9. Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
10. With waterproof rubber seal on the back side.
11. Support wall mounting, desk stand, embedded mounting.

Specification

Model:SL104
LCD panel
Panel size 10.4"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300+
Contrast ratio 800:1
View angle 80°/85°/85°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch optional)
Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption 10.5W
Enclosure
Material Aluminum Alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, storage: -20 to 70°C
Relative humidity Operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 2.3kg
Gross weight 3.8kg
Product Dimension 26.56*21.3*6.1cm
Packing size 43*38*18cm
Accessories Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card
Other
Mounting Embedded mounting screws
Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS


10.4" 1024*768 Aluminum Industrial Touch Monitor 12-24V 010.4" 1024*768 Aluminum Industrial Touch Monitor 12-24V 1
Application

Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores

Automatic pay station machine

Packaging testing equipment

Parking lot self-service payment machine
