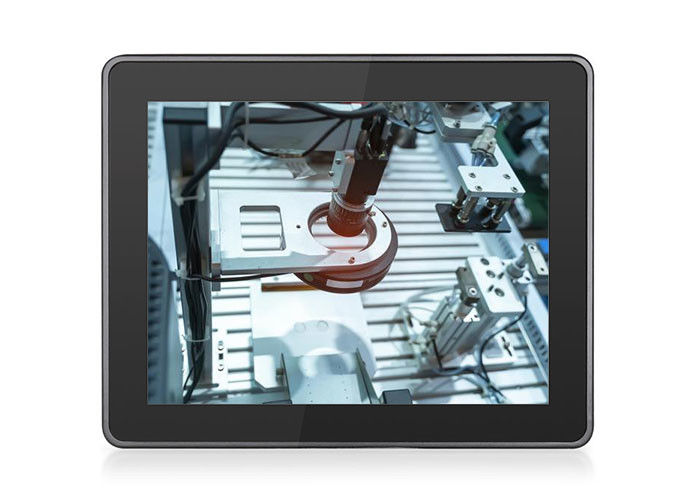

Multi Points IP65 PCAP Touch Monitor RS232 Industrial Dvi HDMI Monitor
Product Details
| Product Name | Embedded Industrial Display | Color | Balck |
|---|---|---|---|
| Material | Aluminum Alloy | Resolution | 1024*768 |
| View Angle | 80°/85°/85°/85° (R/L/U/D) | Signal Ports | VGA/ DVI/ HDMI |
| Brightness | 300cd/m2 | IP Grade | Front Panel IP65 Waterproof |
| Working Voltage | AC 100 - 240V , 50-60Hz | ||
| High Light | Multi Points PCAP Touch Monitor,IP65 PCAP Touch Monitor,RS232 Industrial Dvi HDMI Monitor |
||
Product Description
Feature
1. Fully enclosed design, the whole monitor is dustproof.
2. 5MM circular arc Narrow Bezel, seamless design, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. EMI/ EMC standard Anti-electromagnetic interference.
9. Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
10. With waterproof rubber seal on the back side.
11. Support wall mounting, desk stand, embedded mounting.
Specification
| Model:SL12 | |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 800:1 |
| View angle | 80°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤13W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 4kg |
| Product Dimension | 29.797*23.65*6.1cm |
| Packing size | 43*38*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
