Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC17WF
Contact Us

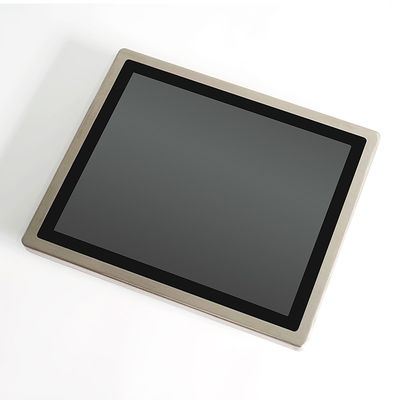

RAM 4G 64G SSD Capacitive Touch IP65 Stainless Steel 304 Industrial LCD Screen PC
Feature

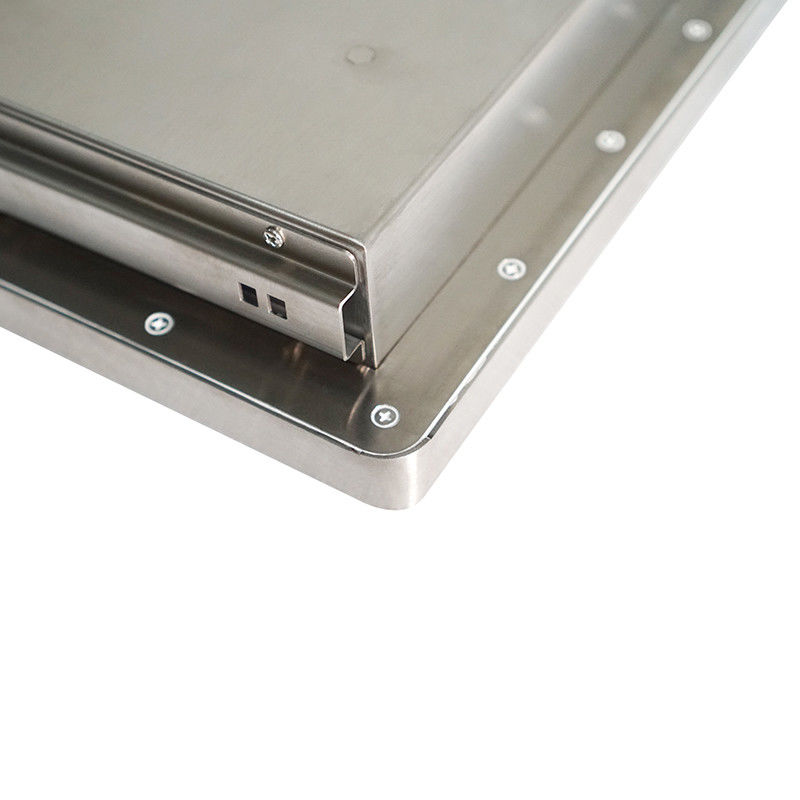

1. Full IP65 sealed stainless steel 304 enclosure, true flat panel design, round corner design.
2. With air valve, keep air pressure balance inside and outside, anti fogging.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. EETI waterproof solution.
6. With optical bonding technology to enhance display readability.
7. High performance motherboard, fanless design , 7x24 continuous operation.
8. Acid-resistant, alkali-resistant, corrosion-resistant.
Specification
| Model: SC17WF | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3, (2G ,8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| I/O Interface | 3*USB+1*LAN+1*RS232+1*DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80/80/80/80 (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | stainless steel case |
| Color | Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7 KG |
| Gross weight | 10.5 KG |
| Product Dimension | 40.89×34.13×5.8 cm |
| Packing size | 64×48×18 cm |
| Accessories | Power adapter,waterproof RS232/LAN/USB cable,power cord |
| Other | |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Certificates | CE, FCC, RoHs |
| Warranty | 2 years warranty |
Drawing
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
