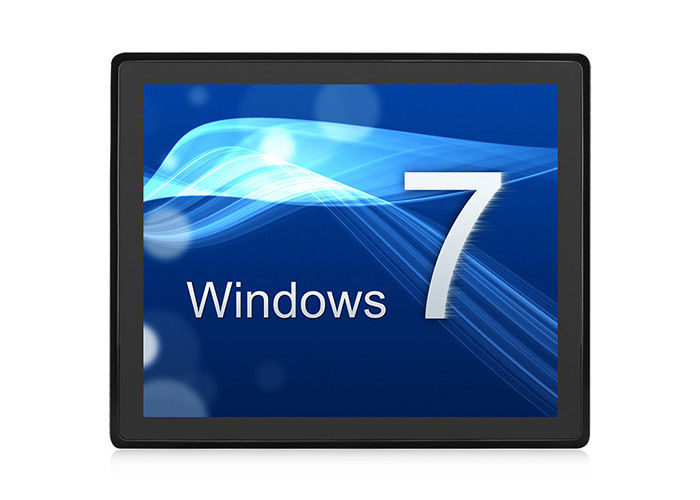

10 Point 1280x1024 300nits Embedded Touch Screen Monitor 24W
|Product Name||Embedded Industrial Monitor||Color||Balck|
|View Angle||85°/85°/80°/85° (R/L/U/D)||Signal Ports||VGA/ DVI/ HDMI|
|Brightness||300 Cd/m2||IP Grade||Front Panel IP65 Waterproof|
|Working Voltage||AC 100 - 240V , 50-60Hz|
300nits Embedded Touch Screen Monitor,
1280x1024 Embedded Touch Screen Monitor,
24W Capacitive Touch Screen Monitor
1. Fully enclosed design, the whole monitor is dustproof.
2. Seamless design flat bezel, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. EMI/ EMC standard Anti-electromagnetic interference.
9. Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
10. With waterproof rubber seal on the back side.
11. Support wall mounting, desk stand, embedded mounting.
|Support Color||16.7M colors|
|View angle||85°/85°/80°/85° (R/L/U/D)|
|Touchscreen Type||Project Capacitive Touch (10 points )|
|Touch Interface||USB (RS232 Optional)|
|Touch response time||2ms|
|Working Life||>50 million times|
|Touch options||(5 wires restive touch optional)|
|OSD control||Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.|
|Support languages||English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.|
|Support OS||Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc.|
|External Power Supply||AC 100-240V, 50-60Hz|
|Working voltage||DC 12V|
|IP grade||Front panel IP65 waterproof|
|Temperature Range||Operating: -10 to 60°C, Storage: -20 to 70°C|
|Relative humidity||Operating: 10% to 80%, Storage: 5% to 90%|
|Accessories||Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card|
|Mounting||Embedded mounting screws|
|Wall mounting brackets (optional)|
|Desk stand holder (optional)|
|Warranty||1 year warranty|
|Certificates||CE, FCC, RoHS|
