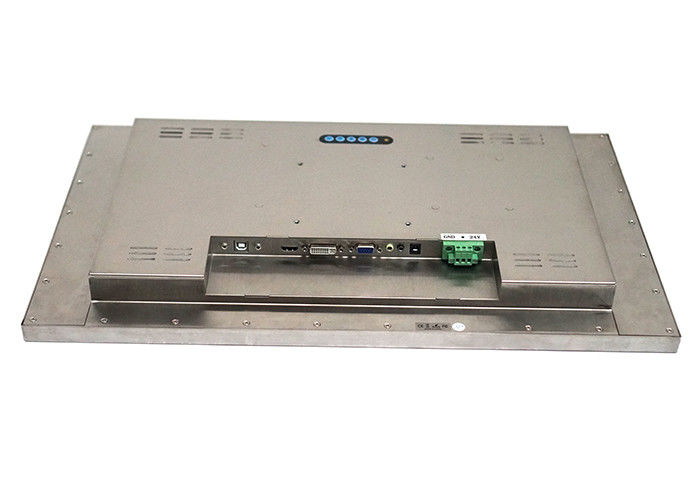

Optical Bonding 45W 21.5" Industrial LCD Panel 1000nits DC9-36V

Optical Bonding 45W 21.5" Industrial LCD Panel 1000nits DC9-36V

21.5" Industrial LCD Panel

45W Industrial LCD Panel

1000nits Stainless Steel Touch Screen

Place of Origin:

China(Mainland)

Brand Name:

Sihovision

Certification:

CE, FCC, RoHS

Model Number:

SL215 S

Contact Us
Request A Quote
Product Details
Product Name:
Stainless Steel Touch Screen
Material:
316 Stainless Steel
Resolution:
1920*1080
View Angle:
80°/80°/80°/80° (R/L/U/D)
Surface Hardness:
7H
Warranty:
12months
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description

21.5" Optical Boding Industrial LCD Panel 1000 Nits DC9V To 36V Stainless Steel Touch Screen

Feature
1. Material: 316 Stainless steel. full IP67 waterproof, Sealed I/O with cable set included.
2. Industrial 15.6'' LCD panel, 1920*1080 resolution, wide viewing angle, high nits, true color.
3. High brightness 1000 nits, sunlight readable.
4. with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI interface.
7. Support wall mounting, embedded mounting, desk stand mouting etc.


Specification

Model:SL215 S
LCD panel
Panel size21.5"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits, sunlight readable
Brightness controlLight sensor for auto dimming
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface Hardness7H
Luminousness90%
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Working Life>50 million times
Touch options(5 wires restive touch optional)
Signal Ports
VGA1x VGA
DVI1x DVI
HDMI1x HDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OSWindows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100 - 240V, 50-60Hz
Working voltage9V-36V
Power consumption≤45W
Enclosure
Material316 Stainless steel
ColorSilver
VESA mounting100x100 mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight7 kg
Gross weight8 kg
Product Dimension53.16x32.82x4.62 cm
Packing size66*45*19 cm
AccessoriesPower adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws
Other
Mountingembedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE, FCC, RoHS

Optical Bonding 45W 21.5" Industrial LCD Panel 1000nits DC9-36V 0Optical Bonding 45W 21.5" Industrial LCD Panel 1000nits DC9-36V 1Optical Bonding 45W 21.5" Industrial LCD Panel 1000nits DC9-36V 2
Drawing
Optical Bonding 45W 21.5" Industrial LCD Panel 1000nits DC9-36V 3


Application

Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores

Automatic pay station machine

Packaging testing equipment

Parking lot self-service payment machine
