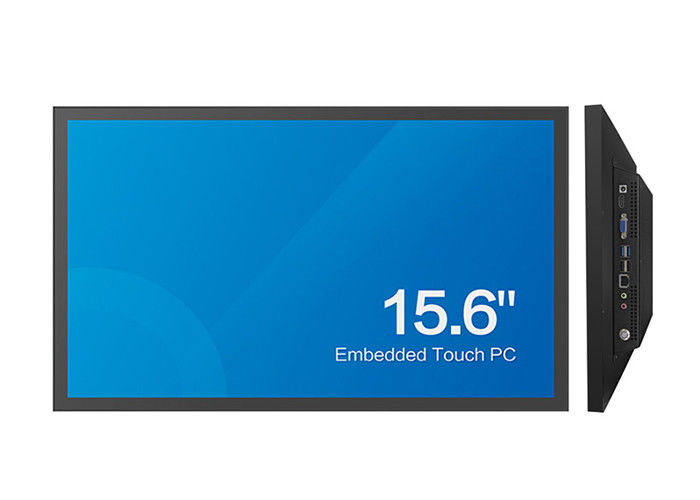

4GB RAM 128GB SSD DC24V Industrial Touch Panel PC 15.6in J1900
Product Details
| Product Name | Magnetic Adsorption Panel PC | Cpu | J1900 |
|---|---|---|---|
| Memory | 4GB | Storage | 128GB |
| Resolution | 1920*1080 | Brightness | 250cd/m2 |
| Material | Aluminum Alloy | View Angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch Type | 10 Points Capacitive Touch | Type | Panel PC |
| IP Grade | Front Panel IP65 Waterproof | Working Voltage | DC24V |
| Warranty | 12months | Feature | Optical Bonding |
| High Light | 128GB SSD Industrial Touch Panel PC,DC24V Industrial Touch Panel PC,15.6in Touch Screen PC |
||
Product Description
Features
1. Fully enclosed design, the whole PC is dustproof.
2. Seamless design flat bezel, front panel IP65 waterproof with silicon seal.
3. Metal shell, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, Full viewing angle, Anti-glare surface treatment (chemical etching).
5. Adopt multi-points PCAP touch panel, covered with 3mm tempered glass 6H for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Optical bonding, increase the light transmittance.
8. Supports Windows 10 & Linux (32Bit, 64Bit).
Specification
| PC System | |
| CPU | J1900//J1800 |
| Graphic GPU | Intel |
| Audio | 2*JACK, ALC662 sound card chip |
| Memory | 1xSO-DIMM DDR3L 1066/1333MHz Memory,Max.8GB |
| Storage (switchable) | Industrial 128GB SSD |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| Display Characteristics | |
| Design | Open Frame |
| Diagonal | 15.6", 39.5cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 250 cd/m |
| LED Life Time | 30,000 Hour |
| Contrast Ratio (Center of screen) | 3000:1 |
| Viewable area W x H | 344.6(W)x194 (H) |
| Response Time | 18ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
| Touch | |
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Surface Treatment | Anti-glare (chemical etching) |
| Touch interface | USB |
| Supported operating systems | win7 ,win10, Linux ,android |
| Through-Glass | 3mm |
| Touch scheme | EETI |
| Mechanical | |
| Fanless design | yes |
| MTBF | 50,000 Hour |
| Cable management system | yes |
| Operation temperature | 0°C - 50°C |
| AngeStorage temperature range | - 20°C - 60°C |
| Power Management | |
| Power supply unit | External |
| Power supply | 12V DC |
| Output power | 36W |
| Rated output current | 3A |
| Installation Method | |
| VESA | 100mm*100mm Mounted at side |
| External Connectors | |
| DC-In | ×1 |
| HDMI | ×1 |
| USB | ×4 |
| Audio(Line-out,Mic-in) | ×2 |
| VGA | ×1 |
| RJ45 | ×1 |
| Com | ×2 |
| Internal Connectors | |
| F_Panel | ×1 |
| F_Audio | ×1 |
| F_USB2.0 Pin | ×4 |
| LPT | ×1 |
| Mini-PCIe | ×2 |
| 2×COM Pin/6xCOM Pin(Optional) 5*RS232/1*RS485 | |
| HDMI | ×1 |
| JVGA | ×1 |
| Speaker | ×1 |
| Dimensions / Weight | |
| Product dimensions W x H x D | 374.4 x238 x 53.8mm |
| Box dimensions W x H x D | 650 x 360 x 60mm |
| Weight (without box) | 7.6kg |
| Weight (with box) | 9kg |
| Product country origin | China |
