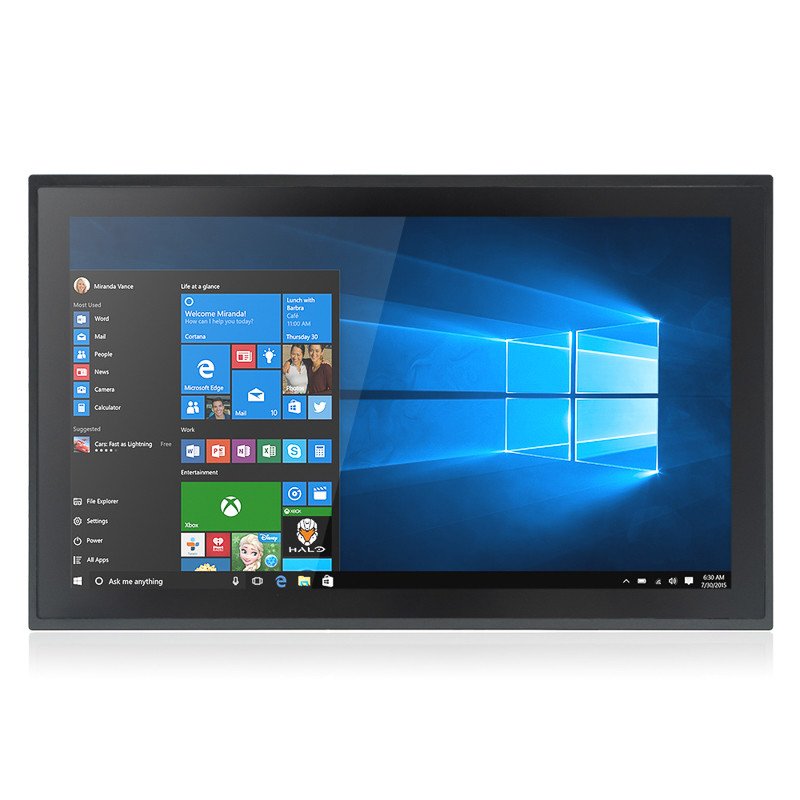

Optical Bonding Anti Glare Fanless Panel PC J4125 8GB 128G SSD

Brand Name:	Sihovision
Model Number:	SC215
MOQ:	1 piece
Price:	Negotiable
Packaging Details:	carton
Payment Terms:	T/T,Western Union,MoneyGram,Paypal,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE, FCC, RoHS

Product Name:

Magnetic Adsorption Panel PC

Cpu:

J4125

Memory:

8GB

Storage:

128GB

Resolution:

1920*1080

Brightness:

1000cd/m2

Material:

Aluminum Alloy

View Angle:

89°/89°/89°/89° (R/L/U/D)

Touch Type:

10 Points Capacitive Touch

Type:

Panel PC

IP Grade:

Front Panel IP65 Waterproof

Working Voltage:

DC 12V

Warranty:

12months

Feature:

Optical Bonding

Supply Ability:

50000pcs/month

Highlight:

Optical Bonding Fanless Panel PC

Anti Glare Fanless Panel PC

128G SSD Touch Screen Industrial Pc

Product Description

Features

1. Intel Celeron J4125 Quad Core CPU 2.0GHz;
2. 8GB RAM memory, 128GB Industrial SSD
3. Supports Windows 10 & Linux (32Bit, 64Bit)
4. Anti-glare surface treatment (chemical etching)
5. 10-Point Multi Touch Capacitive Touch Panel
6. 3mm cover glass with 6H surface hardness
7. Optically bonded Touch Panel to LCD Panel
8. Patented IP65 front with silicon seal
9. Shell structure can be customized

Specification

PC System
CPU	J4125
Graphic GPU	Intel
Memory	1xSO-DIMM DDR4 Memory,Max.8GB
Storage (switchable)	128GB SSD
Driver Support	Win10; Linux; 32Bit/64Bit
Pre-installed OS	Win10
Display Characteristics
Diagonal	21.5"
Panel	LCD, Anti-glare coating
Native resolution	1920(H) ×1080(V)
Aspect ratio	16:9
Brightness	1000 cd/m2
LED Life Time	30,000 Hour
Contrast Ratio (Center of screen)	1000:1
Response Time	10ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color	16.7M colors
Touch
Touch technology	projective capacitive
Touch points	10
Touch accuracy	±2mm
Surface Treatment	Anti-glare (chemical etching)
Touch interface	USB
Supported operating systems	win7 ,win10, Linux ,android
Through-Glass	3mm
Touch scheme	EETI
Mechanical
Fanless design	yes
MTBF	50,000 Hour
Cable management system	yes
Operation temperature	-20°C - 70°C
AngeStorage temperature range	- 30°C - 80°C
Power Management
Power supply unit	External
Power supply	DC 12V
Rated output current	6A
Installation Method
VESA	100mm*100mm
External Connectors
DC-In	×1
HDMI	×1
USB	×4
Audio(Line-out,Mic-in)	×2
VGA	×1
RJ45	×1
Com	×2
Weight
Box dimensions W x H x D	654 x 486 x 185mm
Weight (without box)	9.6kg
Weight (with box)	13kg
Product country origin	China

Certifications
Optical Bonding Anti Glare Fanless Panel PC J4125 8GB 128G SSD 0

OEM & ODM

About Shinho Electronic

Application

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
