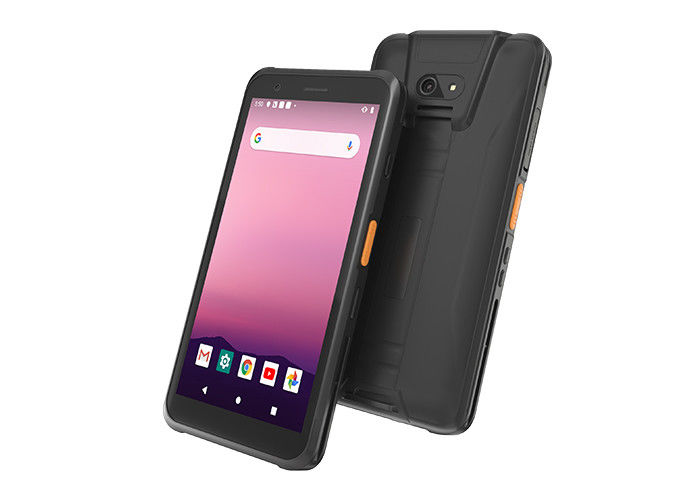

Rugged Android Handheld Mobile Terminal Car Pda 1D 2D With CCC

Brand Name:	Sihovision
Model Number:	R-T60YL
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, Western Union, Paypal, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

CE, FCC, RoHS

CPU:

MTK OCTA Core

RAM:

4GB

Storage:

64G SSD

Operation System:

Android 10 GMS

4G:

Support 3G/4G

GPS:

Support GPS, Glonass, Beidou(G+G+B)

NFC:

Optional

Camera:

Front 13.0MP Rear 16.0MP

WIFI:

2.4G+5G Dual Frequency

Screen:

5.7"

Resolution:

720*1440 IPS

Brightness:

430cd/m2

Touchscreen:

Capacitive(5 Points)

Baterry:

3.8V/5000mAh

IP Grade:

IP67 Waterproof

Highlight:

Rugged Android Handheld Mobile Terminal

CCC Handheld Mobile Terminal

Car Pda Waterproof Android Tablet

Product Description

Functions

• Support for Android 10 system.
• Integrated 3G / 4G all network communication, WiFi, Bluetooth and other communication modes.
• Equipped with 5000mAh large capacity battery, the machine has a endurance of 7 hours.
• IP67 high protection level, in accordance with MIL-STD-810G.
• Support GPS / GLONASS / Beidou / Galileo, more accurate positioning.
• Equipped with front 13 million and rear 16 million pixel auto focus camera.
• Support 1D/2D, NFC and other functional modules to meet the application needs of multiple industries.

Specification

Model:R-T60YL
PC
CPU	MTK OCTA Core
OS	Android 10/GMS
RAM	4GB LPDDR4
ROM	64GB
Network connections
WIFI	2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac)
Bluetooth	BT5.0 LE
3G/4G	GSM 2/3/5/8
	WCDMA 1/2/4/5/8
	TDD B38/B40/B41
	FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/
	B19/B20/B28A/B28B/B18/B25/B26/B66
Basic parameters
Dimension	159.7 x 80 x 16.3mm
Weight	device unit 275g
Device Color	black
LCD	5.7 inch IPS 18:9, 720*1440, 430 Nit
Touch Panel	5 points Capacitive, G+FF
Camera	Front 13.0MP Rear 16.0MP
I/O	Type C x 1,
	TF Card x 1 max: 128G, SIM Card x 1
	(Two out of three card holder)
Power	AC100V ~ 240V, 50Hz/60Hz output DC 5V/2.5A
GPS	support GPS, GLONASS, Beidou, Galileo
Battery
Capacity	3.8V/5000mAh
Type	Built-in Lithium-ion polymer battery
Endurance	7hrs (Default 50% volumn, Default 200 lumens brightness, Play 1080P video)
Reliability
Operate Temperature	-10 °C ~ 50 °C
Store Temperature	-20 °C ~ 60 °C
Humidity	95% Non-Condensing
IP Grade	IP67
Optional modules
NFC	Support ST21NFCDXBGARA7
1D/2D	Support Honeywell6703, Optional SE4710

Rugged Android Handheld Mobile Terminal Car Pda 1D 2D With CCC 0
