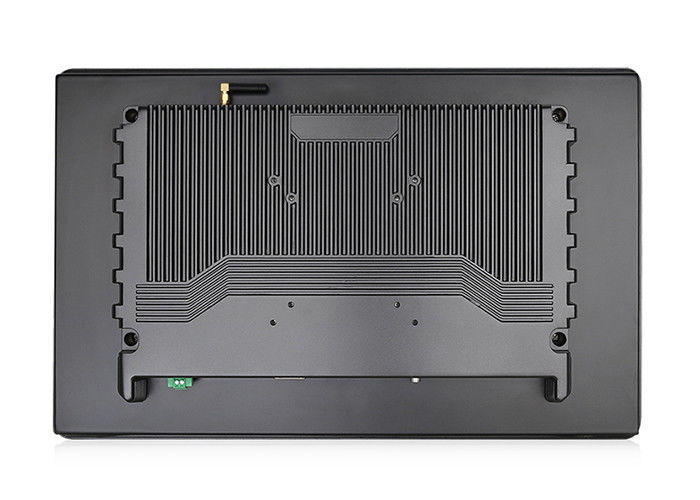

300cd/m2 1440*900 Embedded Industrial Panel Pc 4G 32G 19 Inch RK3399

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SC19A
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal
Product Details
Product Name Android Industrial Panel Pc Cpu RK3399
Resolution 1440*900 Brightness 300cd/m2
Material Aluminum Alloy View Angle 85°/85°/80°/80° (R/L/U/D)
Touch Type 10 Points Capacitive Touch OS Android 9.0
IP Grade Front Panel IP65 Waterproof Working Voltage DC 12V
Warranty 12months
High Light

300cd/m2 Embedded Industrial Panel Pc


1440*900 Embedded Industrial Panel Pc


19 Inch Android Industrial Panel Pc

Leave a Message
Product Description

1. Fully enclosed design, the whole tablet PC is dustproof.

2. Seamless design flat bezel, front panel IP65 waterproof.

3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

6. High performance motherboard, 7x24 continuous operation.

7. With wifi, bluetooth.

Model: SC19A Widescreen
CPU A64, Cortex-A53, Quad core, 1.5GHz
Memory 2GB DDR3 (4G, 8G optional)
Storage 8GB EMMC (16G, 32G optional)
Decoding Resolution Support 1080P
Operation System Android 6.0
Play Modes Support timing, loop and spots etc. play modes
Network Support RJ45, WIFI, 3G, 4G, TD-LTE (optional)
Video Format RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc.
Audio Format MP3, WMA, AAC, etc.
RTC Real Time Clock YES
I/O Interfaces
COM 2xCOM (up to 4)
LAN 1xRJ45, 10M/100M adaptive ethernet
HDMI 1xHDMI , support 1080p
Micro USB 1xMicro USB
Card Slot 1xTF card slot
SIM Slot 1xSIM slot
Audio I/O 1xAudio I/O
LCD panel
Panel size 19"
Resolution 1440*900
Aspect ratio 16:10
Support Color 16.7M colors
Brightness 300 cd/m²
Response time 5ms
Contrast ratio 1000:1
View angle 85°/85°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 10 point capacitive touch
Touch response time <2ms
Luminousness 90%
Surface Hardness 7H
Working Life >50 million times
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤25W
Appearance Flat panel
Material Aluminum alloy
Color Black, Silver
VESA mounting 75x75mm/100x100mm
IP grade Front IP65 waterproof
Operating Environment
Working temperature -10°C to 60°C
Storage temperature -20°C to 70°C
Relative humidity 5-85% (npn-condensing)
Vibration resistance 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration
Impact resistance 10g acceleration, 11ms period
Packing Details
Net weight 6.5 kg
Gross weight 7.5 kg
Product dimension 47.06x31.86x6.6 mm
Packing size 64x45x19 cm
Accessories Power adapter, power cord, embedded screws, user manual, warranty card
Mounting way Embedded mounting screws
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Customization (optional) 3G, 4G, Webcam, RFID reader etc. Optional
Warranty 1 year warranty
