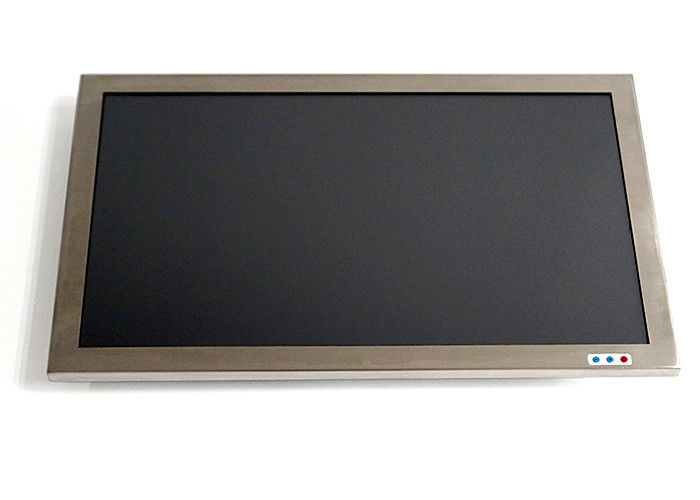

45W SUS316 Enclosure Rugged Monitor 1000nits 5 Wires Resistive Touch Screen

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL24W
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details 73x54x23cm/11kgs/1pc
Delivery Time 5-10 working days for sample, 15-25 working days for bulk
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 50000 pcs/month
Product Details
Product Name Stainless Steel Industrial Monitor Color Silver
Material 316 Stainless Steel Resolution 1920*1080
View Angle 80°/80°/80°/80° (R/L/U/D) Surface Hardness 3H
Warranty 12months
High Light

SUS316 Enclosure Rugged Monitor

,

45W Enclosure Rugged Monitor

,

1000nits Resistive Touch Screen

Leave a Message
Product Description

Feature

1. Robust and durable 316 stainless steel enclosure, sealing design, full IP65 waterproof, Sealed I/O with cable set included.
2. 24'' Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference. it can touch with gloves and dirty hands.
4. 1000 nits, manual brightness. With 2 buttons: 1 button to turn up the light and another button to turn down the light.
5. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
6. High performance mainboard, 7x24 continuous operation.





Specification



Model:SL24W
LCD panel
Panel size 24"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Surface treatment Anti glare
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Surface Hardness USB (RS232 optional)
Luminousness <8ms
Touch Interface 90%
Touch response time 3H
Working Life >35 million times
Touch options (capacitive touch, IR touch optional)
Singal Ports
VGA 1xVGA
HDMI 1xHDMI
DVI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material stainless steel 316
Color Silver
VESA mounting 100x100 mm
IP-grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity operating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight 9 kg
Gross weight 11 kg
Product Dimension 58.89x35.61x5.4cm
Packing size 73x54x23cm
Accessories Power adapter, Waterproof Power cord, Waterproof VGA/HDMI/USB cable
Other
Mounting (options) 1) wall brackets for wall-mounting, VESA 100×100 mm
2) stable metal holder to support the monitor
Warranty 1 year warranty



Drawing

45W SUS316 Enclosure Rugged Monitor 1000nits 5 Wires Resistive Touch Screen 0





Application



Shopping Mall


Super Market


Smart home


Metro station


Compang


Hospital


Airport


Restaurant


Automobile 4S stores



Automatic pay station machine



Packaging testing equipment



Parking lot self-service payment machine
