Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC101

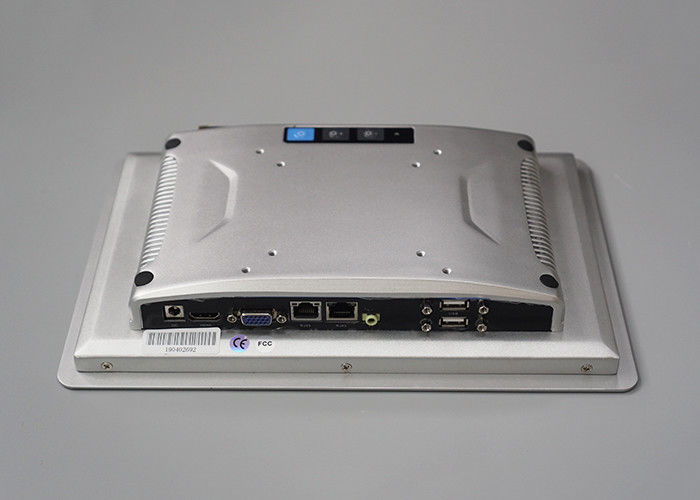

1280*800 Industrial LCD Panel PC Silver 10 Points Capacitive Touch Display Dual Lan All In One Pc
Feature
1. Fully enclosed design.
2. Front bezel aluminum alloy brushed metal craft.
3. Front panel IP65 waterproof.
4. Aluminum alloy shell, excellent heat dissipation.
5. 5 wire resistive touch screen, anti-interference.
6. 4 COM optional, RS232/RS422/RS485 optional.
Specification
| Model: SC101 | |
| Brand | Sihovision |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2xUSB 2.0, 1xCOM RS232, 2*RJ45 |
| 1xVGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 4kg |
| Product Dimension | 29.36x19.36x4.85cm |
| Packing size | 43x38x18cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
Drawing
Products Show
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
