Place of Origin:
Shenzhen, China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SM708

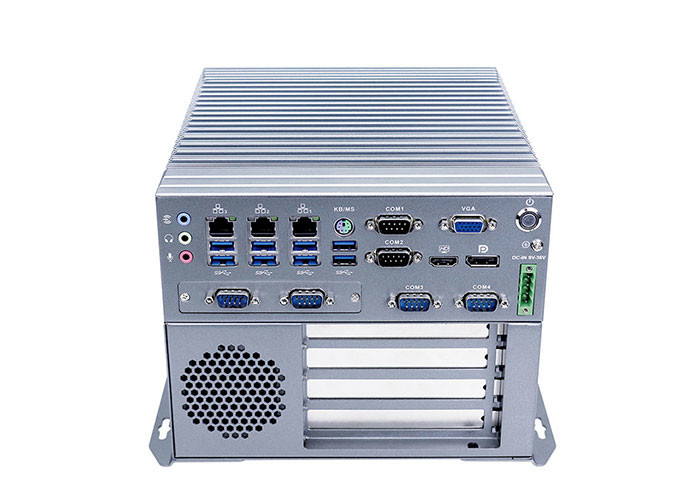

High-End Configuration Fanless Pc I7 6700T Ddr4 32GB Embedded Computer
Key Features:
Stable performance, lower power consumption.
Intel Core i3 6100T (dual core 4 threads,3.2 GHz)·
lntel Core i5 6500T (quad core 4 threads,2.5 GHz,Max turbo 3.1 GHz).
Intel Core i7 670OT (quad core eight threads,2.8 GHz,Max turbo 3.6 GHz).
Efficient heat dissipation
High quality aluminum case
Quickly heat dissipation.Fanless design for dustproof,shockproof and no noise.
Main function
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (o～255 level)
Full HD Dual Display
Support synchronous and asynchronous dual display
Various applications
Small PC with high-end configuration.
| Model:SM708 | |
| PC | |
| CPU (Optional) | Intel Core i3 6100T (dual core, 4 threads, 3.2GHz) |
| Intel Core i5 6500T (dual core, 4 threads, 2.5GHz, MaxTurbo 3.1GHz) | |
| Intel Core i7 6700T (Quad core, 8 threads, 2.8GHz,Max turbo 3.6GHz) | |
| RAM | Support 2*DDR4 1866/2133MHz SODIMM RAM Slot, Max support 32GB |
| Storage | Support 1*MSATA, 2*2.5''HDD ( support RAID0/1) |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 530 |
| Display Port | 1*VGA, 1*HDMI, 1*DP (Support synchronous and asynchronous dual display) |
| I/O | 8*USB3.0, 3*Intel 1000M LAN, 1*Power Switch,1*MIC,2*Speaker, 6*COM(COM1, COM2 RS232/422/485 Optional), 1*DC power supply phoenix |
| connector, 1*VGA, 1*HDMI, 1*DP, 1*Keyboard or Mouse port | |
| Expansion | Support 1*MINI PCIE slot (WIFI/3G/4G Optional), embedded SIM slot |
| Support 1*MINI PCIE Slot (MSATA/3G/4G Optional), embedded SIM slotOptional Port: 16Pin GPIO, 4*USB2.0 (standard version without | |
| these port) | |
| Expansion Slot | 1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot,Max length of expansion card: 210 mm |
| Network | 2* Intel i211-AT 1000M Lan, 1 *Intel i219-LM 1000M Lan(support Vpro Technology ) |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level) (Standard version doesn’t set |
| these function) | |
| Power Supply | |
| Power Supply | Support DC 9V~36V wide voltage input, Support positive pole and negative electrode connect reversely protection |
| Operating Environment | |
| Work Temp | 0℃ ～ +50℃ (Commercial HDD),-20℃ ～ +60℃ (Industrial SSD), Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Packing Details | |
| Dimension | 210 * 240 * 83.5 mm |
| Net Weight | 4 kg |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc. |
| Enclosure | |
| Material | High quality aluminum alloy+ sheet metal structure |
| Color | Titanium gray |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 1 year warranty |
