Place of Origin:
Shenzhen, China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SM1021

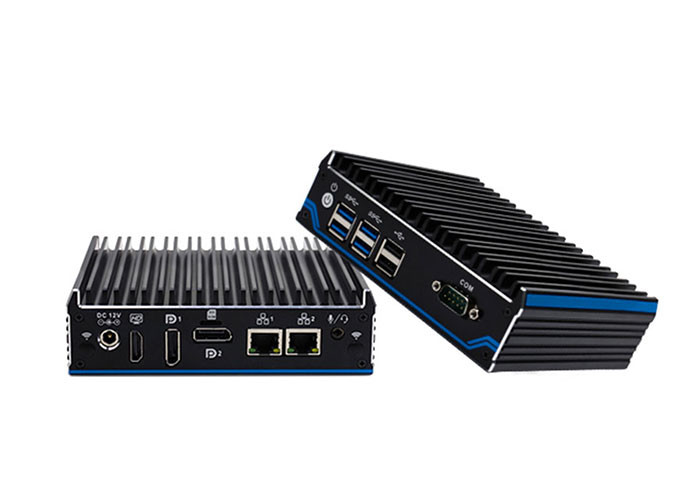

Fanless Mini Pc Computer Desktop Intel J4125 NUC Mini Pc Dual DP Industrial Computer
Key Features:
1. Nano ITX Industrial Motherboard.
2. Fully enclosed heat dissipation design, high and low temperature resistance.
3. Small in shapeexcellent in quality.
4. 1*HD, 2*DP (Support synchronous and asynchronousthree display, Max Resolution support 4096x2160@60Hz).
| Model: SM1021 | |
| PC | |
| CPU | Onboard Intel Celeron J4125(Quad core quad threading,4MB cache,2.0GHz,Max turbo 2.7GHz) |
| BIOS | AMI EFI BIOS |
| CPU Architecture | Gemini Lake Refresh |
| RAM | Support 1*DDR4 2400MHz SODIMM RAM Slot,MAX 8GB |
| Storage | 1*M.2 2280 Slot,Onboard 1*2.5”HDD |
| Display Chip | Integrated Intel HD Graphics Card 600 |
| Display Interface | 1*HDMI,2*DP(Support synchronous and asynchronous three display,Max Resolution support 4096x2160 @ 60Hz) |
| Front I/O | 1*Power Switch,4*USB3.0,2*USB2.0,1*COM |
| Rear I/O | 1*DC,1*HDMI,2*DP,2*Intel 1000M LAN,1*SIM Card Slot,1*Audio (support audio and mic input) |
| Network Card | 2*10/100/1000M RTL8111H Ethernet Lan |
| Expansion | Support 1*M.2 2280 M-key Slot(Support SATA) |
| Support 1*M.2 2242 B-key Slot(Support4G),Embedded SIM slot | |
| Support 1*M.2 2230 E-key Slot(Support WIFI,BT) | |
| Expansion function: TPM Pin (support TPM 1.2 / 2.0 security module),1*COM | |
| Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot |
| Power Supply | Support DC 12 Input |
| Operating Environment | |
| Work Temp | 0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃(Industrial SSD),Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
| Packing Details | |
| Cetificates | CE, CCC, FCC Class A, ROHS |
| Dimension | 144 * 126.5 * 42 mm (L*W*H); |
| Net Weight | 0.8 kg |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc. |
| Enclosure | |
| Case Color | Black (any color can be customized) |
| Material | High quality all aluminum alloy mini itx case |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 1 year warranty |
