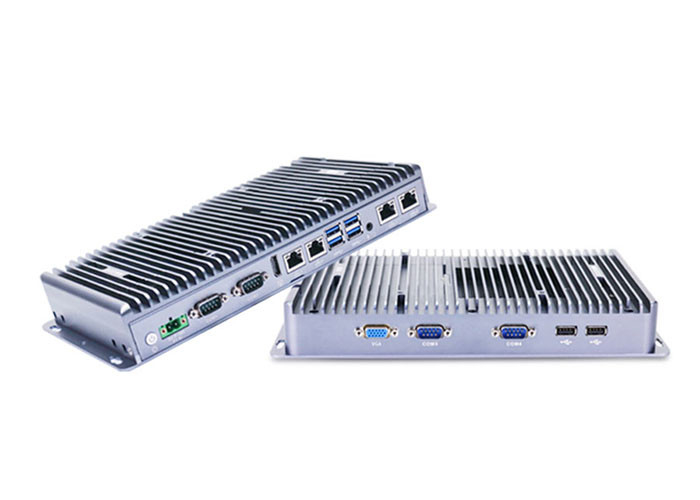

UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM

  • UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM
  • UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM
  • UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM
Place of Origin Shenzhen, China
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SM3046
Minimum Order Quantity 1 Piece
Price negotiable
Packaging Details 1PC/Carton, Weight: 1.45 KG/PC, Packing size: 350*180*90mm
Delivery Time 3-5 working days
Payment Terms T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability 50000 Piece/Pieces per Month
Product Details
Name Fanless Embedded Computer Type Embedded Computer
CPU I7-8565U Graphics Integrated Card
Storage 1*M.2 2280 Slot,1*2.5" HDD RAM Support 1*DDR4
Wifi Yes (Optional) Temp -20℃～60℃
Material Aluminum Alloy Color Silver
Operating System Window 7/ 8 /10, Linux Ubuntu Weight 1.45 Kg
Dimension 280*143*40mm Warranty 12 Months
High Light

UHD Graphics Industrial Mini PC

,

I7 8565U Industrial Mini PC

,

TPM Fanless Embedded Computer
Leave a Message
Product Description

Fanless Embedded Computer I7 8565U Processor DDR4 Industrial Mini Pc With TPM



Key Features:

Stable performance, lower power consumption.
Intel Celeron 4205U (duad core, 2 threads,1.8GHz).
Intel core i5-8265u (quad core, 8 threads, 1.6 GHz, Max Turbo 3.9 GHz).
Intel Core i7-8565u (quad core, 8 threads, 1.6 GHz, Max Turbo 4.1 GHz).

Efficient heat dissipation.
High quality aluminum case forquickly heat dissipation.
Fanless design for dustproof,shockproof and no noise.

I/O
(2*COM support RS232/422/485 optional) lt can connect many device, Such as industrial instruments.
Full HD Dual Display
Support synchronous and asynchronous dual display

Various applications
Small PC with high-end configuration.


Specification
Model: SM3046
PC
CPU Onboard Intel Celeron 4205U(Dual core dual threads,1.8Ghz,2MB Cache);
Onboard Intel Core i5-8265U(Quad core eight threads,1.6Ghz,Max turbo 3.9Ghz,6MB Cache);
Onboard Intel Core i7-8565U(Quad core eight threads,1.8Ghz,Max turbo 4.6Ghz,8MB Cache);
BIOS AMI EFI BIOS
RAM Support 1*DDR4 2133/2400 SODIMM Memory slot,Max. Support 32GB
Display Chip Integrated Intel UHD Graphics
Display Port 1*VGA,1*HDMI(Support synchronous and asynchronous dual display)
Front I/O 2*USB2.0,2*COM,1*VGA
Rear I/O 4*Intel 1000M LAN,4*USB3.0,1*HDMI,1*Audio (Support Mic and Speaker at the same time)
2*COM(COM1,COM2 RS232/RS422/RS485 Optional),1*2Pin power supply phoenix connector,1*Power Switch
Expansion Support 1*M.2 M-Key 2280 slot(Support SATA Protocol)
Support 1*MINI PCIE Slot(WIFI/3G/4G Optional; choose one from three),embedded SIM Slot
Expansion Ports:GPIO(8 Input 8 Output),2*COM,1*USB2.0(Standard version doesn’t include these ports)
Network 4*Intel i211-AT 10/100/1000M LAN
Storage 1*M.2 2280 slot,1*2.5” HDD,Support RAID 0/1
Function TPM2.0 security encryption,Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0~255 level)(Standard version doesn't set these function)
Power Supply
Power Supply DC 9V ~ 36V wide voltage Input,support positive pole and negative electrode connect reversely protection;
Enclosure
Case Color Titanium gray (Color can be customized)
Material Aluminum alloy chassis
Operating Environment
Work Temp 0℃ ~ +50℃(Commercial HDD),-20℃ ~ +60℃(Industrial SSD),Surface air flow
Work Humidity -10°C - 50°C
Working Humidity 5% ~ 95% non-condensing
Packing Details
Size 280*143*40mm
Weight 1.45kg
Application Industrial Automation,Medical,Data Acquisition, Motion Control, Vehicle Applications etc.
Other
Mounting (options) 1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Customization 3G,4G,Webcam, RFID reader etc. optioanal
Warranty 1 year warranty


Pictures
UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM 0UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM 1UHD Graphics I7 8565U Industrial Mini PC Fanless Embedded Computer With TPM 2
