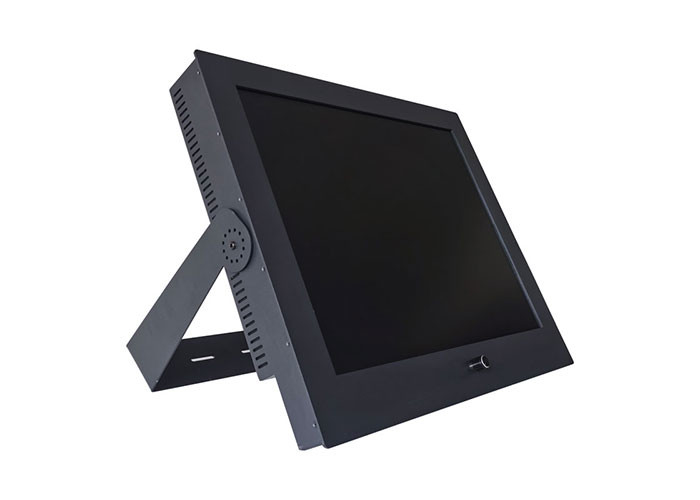

45W 1000 Nits Stainless Steel Monitor IP65 VGA DVI With Bracket

  • 45W 1000 Nits Stainless Steel Monitor IP65 VGA DVI With Bracket
  • 45W 1000 Nits Stainless Steel Monitor IP65 VGA DVI With Bracket
  • 45W 1000 Nits Stainless Steel Monitor IP65 VGA DVI With Bracket
Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL201
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details 65.5*17*61cm/12.4 kgs/1pc
Delivery Time 5-10 working days for sample, 15-25 working days for bulk
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 50000 pcs/month
Product Details
Name Industrial Monitor Color Black
Material 316 Stainless Steel Resolution 1600*1200
View Angle 80°/80°/80°/80° (R/L/U/D) Surface Hardness 7H
High Light

1000 Nits Stainless Steel Monitor

,

45W Stainless Steel Monitor

,

VGA DVI Industrial LCD Monitor
Leave a Message
Product Description

PRODUCTS FEATURES



1. Material: Stainless steel 316.
2. Industrial 20.1'' LCD panel, 1600*1200 resolution, wide viewing angle, high nits, true color.
3. Cover with 4MM tempered glass, front panel IP67 waterproof.
4. Black nailpaint on all screws, and with stop slice.
5. High brightness 1000 nits, sunlight readable.
6. With dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
7. High performance mainboard, 7x24 continuous operation.
8. 9-36V DC.





Specification

Model:SL201
LCD panel
Panel size 20.1"
Resolution 1600*1200
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits
Brightness control Manual dimmer
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Signal Ports
VGA 1x VGA
DVI 1x DVI
HDMI 1x HDMI
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Stainless steel 316
Color Ink Black
VESA mounting 100x100mm
IP grade Front panel IP67 waterproof
Operating Environment
Temperature Range Operating: -20 to 70°C, storage: -20 to 80°C
Relative humidity Operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 11kgs
Gross weight 12.4kgs
Product Dimension 49*40*6.15cm
Packing size 65.5*17*61cm
Accessories Power adapter, power cord, HDMI cable, embedded screws
Other
Mounting Embedded mounting screws
Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS



Drawing

45W 1000 Nits Stainless Steel Monitor IP65 VGA DVI With Bracket 0





Application



Shopping Mall


Super Market


Smart home


Metro station


Compang


Hospital


Airport


Restaurant


Automobile 4S stores



Automatic pay station machine



Packaging testing equipment



Parking lot self-service payment machine
