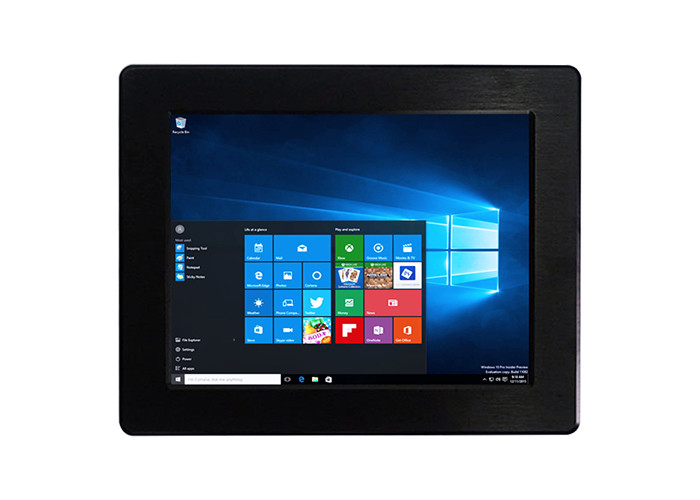

Industrial All-In-One PC J1900 IP65 Waterproof Panel PC Resistive Touch Screen
Feature
1. Case Made of sturdy and durable aluminum.
2. Wide viewing angle industrial LCD panel.
3. Fully sealed and fanless design, IP65 Protection level.
4. Adopt high precision 5 wire resistive touch screen, anti-interference.
5. Industrial motherboard, support 7*24h continuous operation.
Specification
| Model:SC12W | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (2G, 8G optional) |
| Hard Drive Capacity | 64G SSD |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2xUSB 2.0, 3xCOM RS232, 2xRJ45 |
| 1xVGA/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Brightness (cd/m²) | 450 nits |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Working voltage | DC 9V-24V wide voltage |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
FAQ
Q: What is the main size for your industrial monitor?
A: 7",8”, 10.1”, 10.4”,11.6", 12”, 12.1” 15”, 15.6”, 17” ,17.3‘’,19” ,19.1'',21.5”and wide screen the same size. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. free charge.
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
