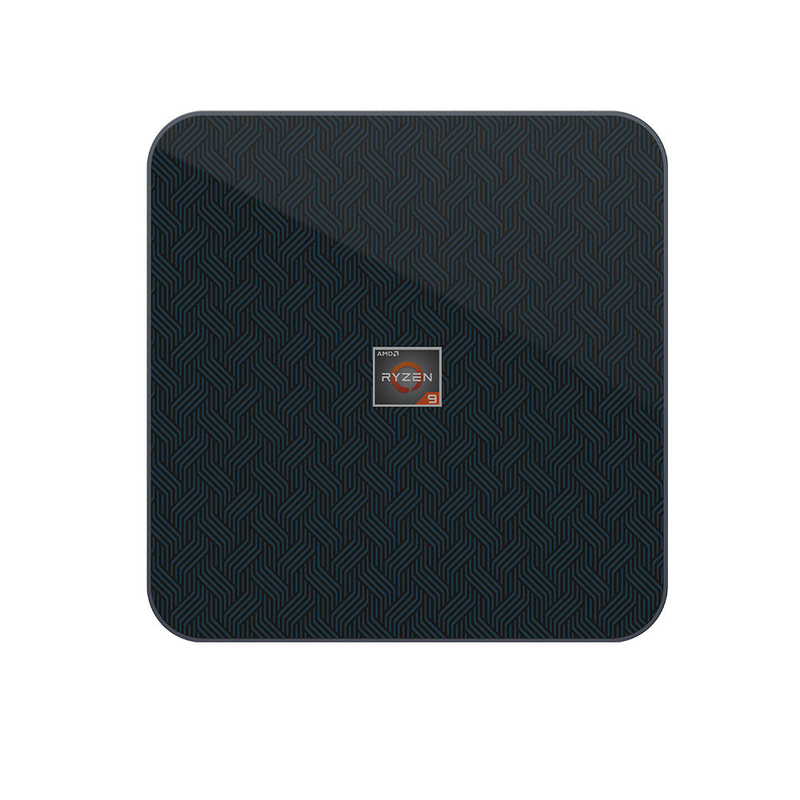

Bluetooth 5.2 Industrial Mini PC 64G DDR4 4266MHz AMD R7 5800U 100W

Dual Channel Memory 64G DDR4 4266MHz AMD R7 5800U 2 Lan Ports Mini PC

Processor parameter for referance only

1. 7nm AMD Ryzen 7 5800U 8 cores 16 threads 1.9GHz up to 4.4GHz 16MB cache TDP 15W Radeon™ Graphics 6 Core 2000MHz.

2. 7nm AMD Ryzen 9 5900H 8 cores 16 threads 3.3GHz up to 4.6GHz 16MB cache TDP 35W Radeon™ Graphics 6 Core 2100MHz.
3. 7nm AMD Ryzen 9 5900HX 8 cores 16 threads 3.3GHz up to 4.6GHz 16MB cache TDP 45W Radeon™ Graphics 8 Core 2100MHz.

Feature

- Onboard high-end AMD Ryzen 5000 series 7nm Processor with powerful computing performance.
- Onboard AMD Radeon™ VEGA Graphics with fast graphics processing capabilities for gaming and 3D design.
- Support HDMI2.0, DP1.4 and Type-C for 3x4K@60Hz video display synchronously and a synchronously.
- Support 2*M.2 2280 NVME/PCIE3.0x4/SATA SSD+1*2.5'' SATA HDD/SSD.
- Support 2.5G&1GDual RJ45 Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/BT.
- Onboard a powerful copper fan for heat dissipation, keep the computer stable working 7x24 hours.
- Support TPM2.0, PXE, RTC, Wake on LAN, Auto power on etc.

Full featured Type-C

* USB 3.2 Gen. 2 data transfer at 10 Gbps
* Video output supports 4K 60Hz display
* 15W (5V @ 3A) USB power delivery / fast charging to quickly recharge your phone or power other peripherals, like a small monitor.
* You can power the S500+ by USB-C instead of the AC adapter (requires a 20V 5A USB-C power supply, not included)
-can connect an external video card using an M.2-to-PCIe adapter (not included).

Pictures

FAQ

Q1.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).

Q2: Are you a factory or a trading company?
Re: We are one of the professional computer manufacturers located in Shenzhen, China.

Q3: What Operating System is installed before delivery?
Re: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.

Q4.: Can you arrange the shipment? Since it's my first time to buy from China
Re: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
