Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC08A

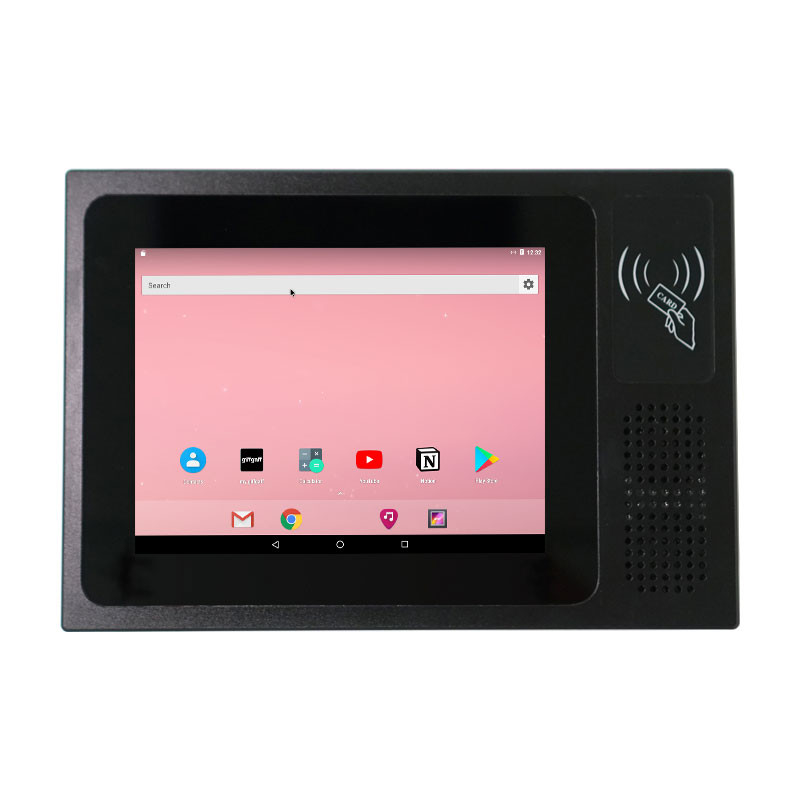

Android 7.1 Industrial Tablet Pc NFC Rk3399 4G RAM 16G ROM Dual Lan Hmi Touch Screen 8 Inch
Features
Enclosure
Appearance: Flat panel
Material: Aluminum alloy bezel+ High strength cold rolled steel back case
Color: Black, Silver, others Optional
VESA mounting: 100x100mm
IP grade: Front IP65 waterproof
Operating Environment
Working temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: 5-85% (npn-condensing)
Vibration resistance: 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration
Impact resistance: 10g acceleration, 11ms period
Specification
| Model: SC08A | |
| PC | |
| CPU | RK3399, Dual Cortex-A72 + Quad Cortex-A53, 2.0GHz |
| Memory | 4GB DDR3 |
| Storage | 16GB EMMC |
| GPU | ARM Mali-T860MP4 (600 MHz) |
| Decoding Resolution | Support 1080P |
| Operation System | Android 7.1 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G, TD-LTE (optional) |
| Image Format | JPEG/BMP/GIF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 2xUSB |
| LAN | 2xRJ45, 10M/100M adaptive ethernet |
| Card Slot | 1x TF card slot |
| DC | 1xDC |
| Phoenix terminal | 1xPhoenix terminal |
| LCD panel | |
| Panel size | 8" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 300 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Packing Details | |
| Net weight | 2.35 kg |
| Gross weight | 2.85 kg |
| Product dimension | 26x18.2x3.8 cm |
| Packing size | 48x38x13cm |
| Accessories | Power adapter, power cord, embedded screws |
| Other | |
| Mounting way | wall mounting bracket (optional) |
| desk stand holder (optional) | |
| Customization (optional) | 3G, 4G, Webcam, RFID reader etc. optioanal |
| Warranty | 1 year warranty |
Competitive Advantage:
1.As a leader manufacturer since 2014, we have more than 8 years experience in such area;
2.All of our products are with strict QC testing to ensure high quality products for you;
3. With such a mass production, we can provide you the most competitive prices.
Certifications
About Shinho Electronic
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
FAQ
1. What is your company's main product?
A:Our main product is touch monitor, panel pc, tablet pc, mini pc, advertising players.
2. Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
3. Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Western Union payment.
4. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
5. Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing.
