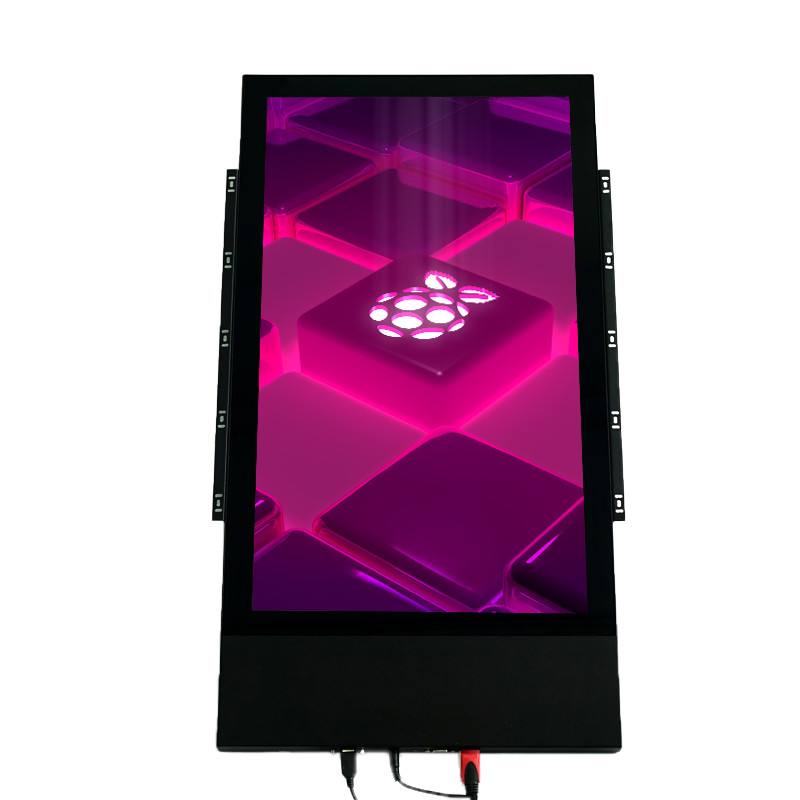

Embedded Raspberry PI Monitor 27inches FHD 1920x1080 Multi Points PCAP Touch Panel
Product Details
| Product Name | Raspberry PI Monitor | Colors | Balck |
|---|---|---|---|
| Material | High Strength Cold Rolled Steel | Resolution | 1920*1080 |
| View Angle | 178/178 | Signal Ports | VGA/ HDMI |
| Brightness | 400cd/m2 | Mounting | Desk Stand |
| High Light | Embedded Raspberry PI Monitor,FHD 1920x1080 Raspberry PI Monitor,Multi Points PCAP Touch Panel |
||
Product Description
Embedded Raspberry PI Monitor 27inches FHD 1920*1080 Multi Points PCAP Touch Panel
This is a touch screen monitor specially designed for Raspberry Pi, a lot of touch monitors do not work well on Raspberry Pi, especially touch screen. Our team of engineers made adjustments and optimizations for the application of the display on the Raspberry Pi, so that the touch monitor can run stably on the Raspberry Pi, and upgraded the touch driver dedicated to the Raspberry Pi, with high sensitivity and fast response speed.
Feature
- Robust and durable full metal case, shockproof, excellent heat dissipation.
- Industrial LCD panel, FHD 1920*1080, full viewing angle, high nits, true color.
- Adopt multi-points PCAP touch panel, high sensitive and fast-response.
- High performance mainboard, 7x24 continuous operation.
- Support embedded, desk stand mouting, wall mounting etc.
- Compatible with Raspberry PI.
Specification
| Model: SL27 | |
| LCD panel | |
| Panel size | 27" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
Advantage
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.
FAQ
Q: What is your company's main product?
A:Our main product is Panel pc, touch screen monitor, box pc, advertising players.
Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we
will also deliver the goods to you.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Western Union, PayPal.
Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing.
