SS304 military LCD display IP67 Waterproof 21.5INCH Industrial LCD Panel Monitor

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL215S
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Military Monitor Colors Balck
Material Stainless Steel 304 Resolution 1920*1080
View Angle 160°/160° Signal Ports DVI
Brightness 1000nits Working Voltage 9V-36V
High Light

SS304 military lcd display

,

Stainless Steel 304 military lcd display

,

21.5INCH Industrial LCD Panel Monitor

Leave a Message
Product Description

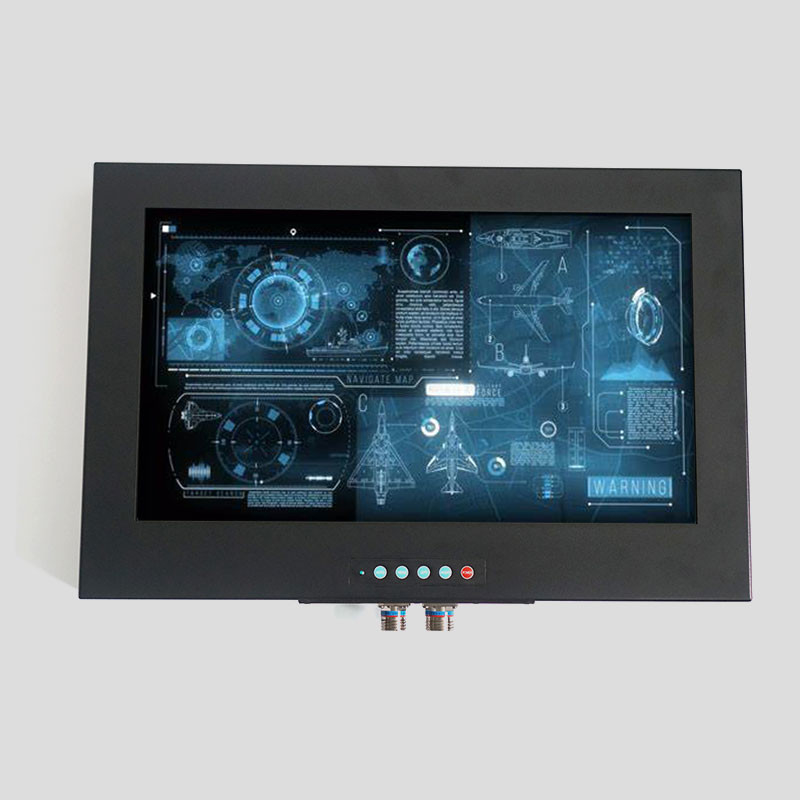

Military Monitor SS304 IP67 Waterproof 21.5INCH Industrial LCD Panel Monitor


This is a military monitor of we customized desige for UK customers. The military monitor is equipped with the military connector D38999/20FD19PN specified by the customer. At the same time, the shell is required to be corrosion-resistant material.
Our engineer choose stainless steel 304 with strong corrosion resistance, for the outdoor applications, we add an anti-ultraviolet layer to the surface of the monitors. Inside, adopt a industrial-grade motherboard, and add an anti-oxidative coating to the surface of the motherboard to protect from environmental erosion and increase the use of Lifespan. The military monitor has reached IP67 waterproof protection level, which is protected from erosion from rain, sunlight, air and other environments, extending the life of the display.


Feature



  • Material: Stainless Steel 304, Full IP67 waterproof, Sealed I/O cables included.
  • Black Powder coated Housing with front OSD buttons.
  • 21.5'' Industrial LCD panel, 1000 nits. sunlight readable.
  • Covered with 3mm AF glass, anti-fogging, anti-fingerprint.
  • Military grade connnector: DVI (D38999/20FD19PN) and DC power (D38999/20FC4PN).
  • Wide range DC power input 9 to 36vdc with "Reverse Polarity Protection" .
  • High performance motherboard, 7x24 continuous operation.


Specification



Model:SL215S
LCD panel
Panel size 21.5"
Resolution 1920*1080
Covered glass Covered with 3mm AF glass, anti-fogging, anti-fingerprint
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Signal Ports
DVI 1x DVI (D38999/20FD19PN)
Enclosure
Material 304 Stainless steel
IP grade Full IP67 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage 9V-36V
Power consumption ≤45W


SS304 military LCD display IP67 Waterproof 21.5INCH Industrial LCD Panel Monitor 0SS304 military LCD display IP67 Waterproof 21.5INCH Industrial LCD Panel Monitor 1

OEM & ODM It Is Welcome :

1. Different Metal Case Optional.

2. No Frame Optional (SKD).

3. Touch Screen Optional (Resistive,Infrared,Capacitive Touch).

4. DVI USB AV BNC SD Card Optional.

5. Industrial Panel,IPS Panel,High Brightness Panel Optional.

6. Different Size 5inch-42inch Optional.

7. Desktop,Wall Mount Optional.

8. Customized Service.
