Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SL19S

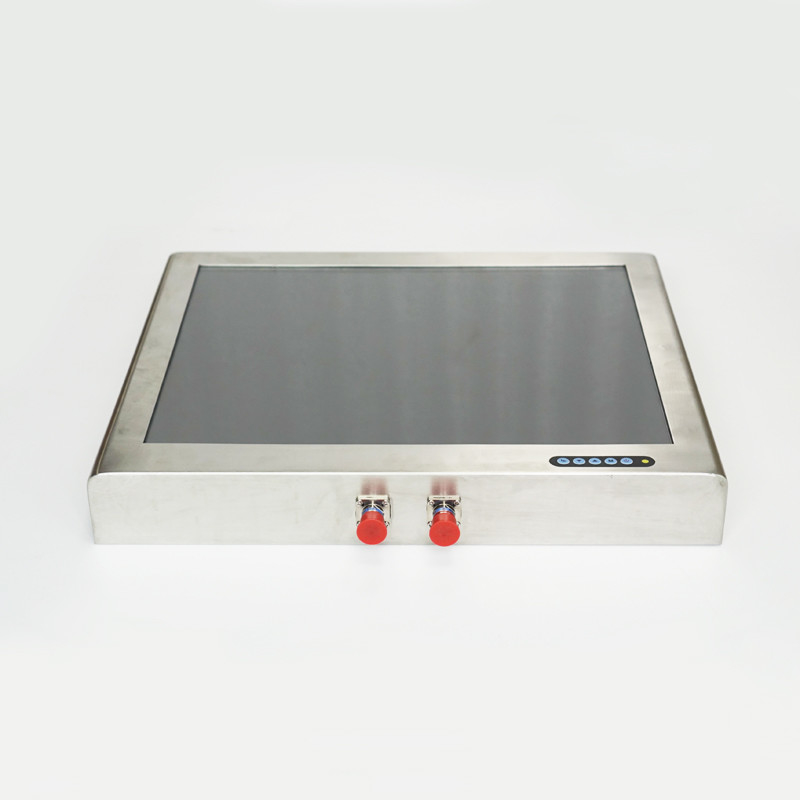

Full IP67 Industrial LCD Panel Monitor 1000 Nits, 3mm AF Glass
Feature
Full IP67 LCD monitor with stainless steel enclosure, support jet washing. Industrial LCD panel, brightness up to 1000 nits, Covered with 3mm AF glass, anti-fogging, anti-fingerprint, 24x7 continuous operation.
Specification
| Model:SL19S | |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 5 : 4 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 cd/m², sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 170°/160° |
| Customization | Covered Anti-fogging glass |
| Signal Ports | |
| AV | Composite video (PAL & NTSC) Water-Proof Military DTL-38999 series iii connectors |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V Water-Proof Military DTL-38999 series iii connectors |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Stainless steel 304 |
| Color | Silver |
| VESA mounting | 100x100mm |
| IP grade | Full IP67 |
| Operating Environment | |
| Temperature Range | operating: -30 to 85°C, storage: -30 to 85°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
OEM & ODM It Is Welcome :
1. Different Metal Case Optional.
2. No Frame Optional (SKD).
3. Touch Screen Optional (Resistive,Infrared,Capacitive Touch).
4. DVI USB AV BNC SD Card Optional.
5. Industrial Panel,IPS Panel,High Brightness Panel Optional.
6. Different Size 5inch-42inch Optional.
7. Desktop,Wall Mount Optional.
8. Customized Service.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 7-15 days, mass production time needs 7-45 days or more according to the order quantity.
Q3. Do you have any MOQ limit?
A: Yes, but MOQ varies because of different product type, 1 pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Firstly let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
