Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC07

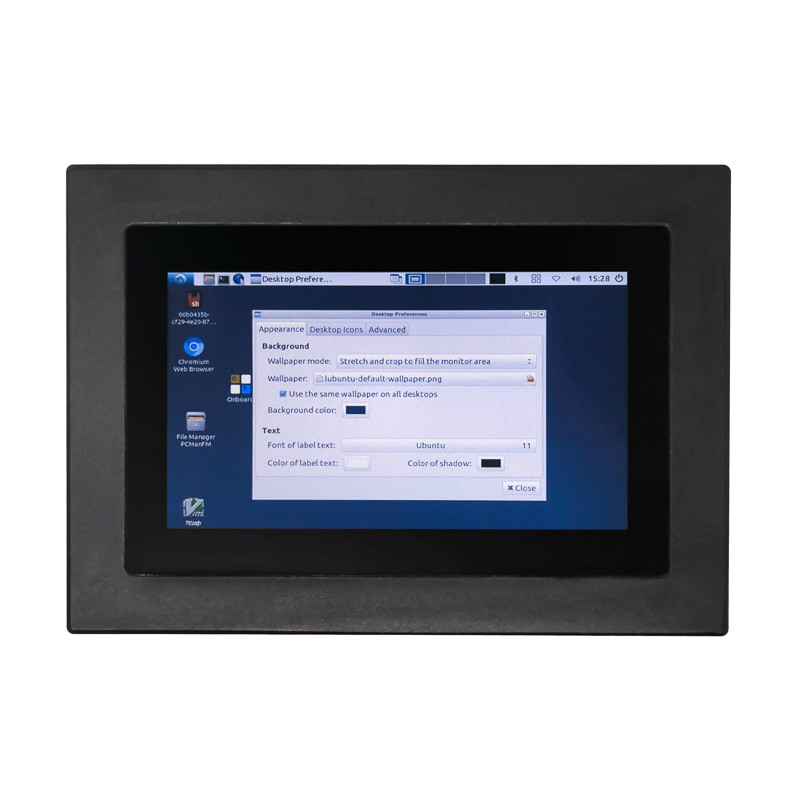

Embedded Panel Ubuntu PC RK3288 ip65 waterproof 1024*600 Capacitive Touch
Feature
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof .
2. Industrial LCD panel, wide viewing angle.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Specification
Model:SC07 | |
PC | |
CPU | RK3288 Quad-core Cortex-A17 up to 1.8GHz Mali-T764 |
Memory | 2G DDR3 (4G,8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 64G,128GB,256GB |
HDD: 500GB,1TB | |
Wireless Network | WIFI |
I/O Interface | 4×USB, 1x OTG, 2 x COM RS232 |
1×HDMI/RJ45/Audio OUT/TF/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
LCD panel | |
Panel size | 7" |
Resolution | 1024*600 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness | 300 cd/m² |
Response time | 5ms |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Touch Interface | USB (RS232 optional) |
Touch response time | 2ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working life | >50 million times |
Touch options | ( 5 wire resistive touch, IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | 12V |
Power consumption | ≤45W |
Enclosure | |
Material | Aluminum Alloy front bezel + High strength cold rolled steel back case |
Color | Silver , Black, white, color can be customized |
VESA mounting | 75×75mm/100×100mm |
IP grade | front panel IP65 waterproof |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 3.8kg |
Gross weight | 4.3kg (2pcs/box) |
Product Dimension | 157.7*222.17*46mm |
Packing size | 30*30*24cm (2pcs/box) |
Accessories | Power adapter,embedded screws,user manual,warranty card |
Other | |
Mounting (options) | embedded mounting screws |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
FAQ
1) Q:What is the minimum order quantity?
Refee: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
Refee: It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.
3) Q:How long is the warranty time for your products?
Refee: We provide 1 year warranty for all of our products and supply life-time maintenance.
4) Q:what's the shipment terms and delivery time of your company?
Refee: It depends on order quantity, shipping address and shipping methods.
5) Q:Do you give any discount ?
Refee: Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price
based on the right solution.
6) Q:I would like to ask you if it's possible to have my logo on the product.
Refee: Logo printing service is available for mass order based on our MOQ.
7)Q:What kind of certification do you get?
Refee: We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
