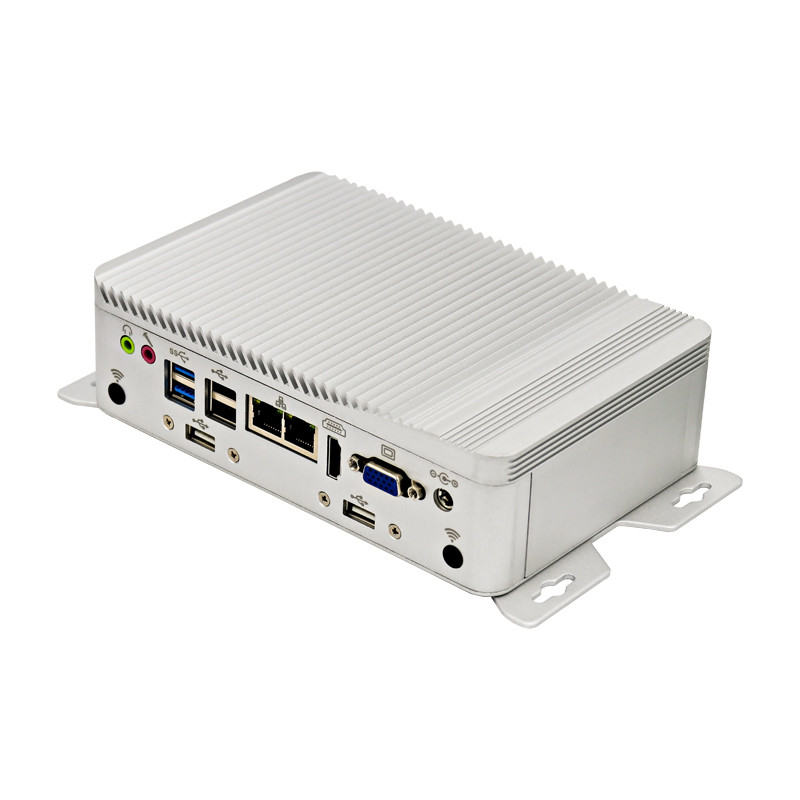

Mini Embedded Fanless PC Diskless Boot For Industry Controlling System

Brand Name:	Sihovision
Model Number:	SM10-1
MOQ:	1 Piece
Price:	negotiable
Payment Terms:	T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Name:

Mini Embedded Computer

CPU:

Intel Celeron J1900

Memory:

1*DDR3L SODIMM, Max 8GB

Storage:

1*MSATA,1*SATA3.0

Expand:

1*Mini-PCIe Half Card, 1*Mini-PCIe Full Card

Network:

2*Intel I211/i210

Highlight:

Mini Embedded Fanless PC

Diskless Boot embedded fanless pc

Industry Controlling System fanless mini computer

Product Description

Mini Embedded Fanless Computer Pc For Industry Controlling System In Harsh Environment

Quick Details

1x DDR3L SODIMM, up to 8GB memory
6 RS-232 serial ports (2 of them support RS485/RS442)
2x Intel i210/i211 Gigabit LAN
One-key restore, watchdog, diskless boot
Low power fanless
Industrial grade working temperature -25℃~70℃

Specification

Feature


			CPU
			Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.4GHz, Fanless

			CPU Optional
			Intel® Core i3-6157U, 2 Cores, 4 Threads, Base 2.4GHz, Turbo 2.7GHz, Fanless

			Memory
			1xDDR3L SODIMM, Max 8GB

			Storage
			1x MSATA

			1x HDD/SSD

			Display
			1x HDMI, 1x VGA

			Network
			2x GbE RJ45 Intel i211/i210

			I/O
			1x USB3.0, 5 x USB2.0, 2xLAN(GbE RJ45 Intel i211/i210), 6x COM (2 of them support RS485/RS442), 1x HDMI, 1xVGA, 10 x GPIO(Custom I/O), 1x Power Button, 1x3.5mm Jack, 1x Mic in, 2x Antenna port, be used for WIFI/3G/4G

			Expansion Slot
			1x Mini-PCIe half card, support WIFI Bluetooth

			1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth

			BIOS
			AMI EFI BIOS

			WDT
			Support hardware reset (256 level, 0-255 sec)

			Operation System
			Windows® 7/8/10, WES 7/10, LINUX

Power Supply

			External Power Supply
			AC 100 - 240V

			Working voltage
			DC 12V

			Power consumption
			≤15W

Operating Environment

			Material
			Aluminum Alloy

			Color
			Black

			Temperature Range
			Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow

			Relative humidity
			0%~95% , non-condensing

Packing Details

			Net weight
			1.0 kg

			Gross weight
			2.0 kg

			Product Dimension
			180 x 120 x 54 mm

			Packing size
			30*20*12cm

			Accessories
			Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws

Other

			Mounting (options)
			Wall mounting

			Desktop installation

			Warranty
			2 years warranty

FAQ

Q: What does your after-sales service include?
A: if there are quality problems in 2 years, in addition to the motherboard and screen, free replacement of other accessories.

Q: If there is a problem with the system program, how do you fix it?
A: We offer real-time one-on-one online technical support, at the same time, we will also support with video tutorials and
technical documents.

Q: Would you help us to install the machines?
A: We will provide you full set video of installation technical instruction.

Q: Can I custom the I/O interface for my project/ clients?
A: Yes, but it has a limit for every model, different model with different max limit.

Q: Are there any other configuration options for this model, such as CPU?
A: Yes, we have many models and related configurations for you to choose from.
