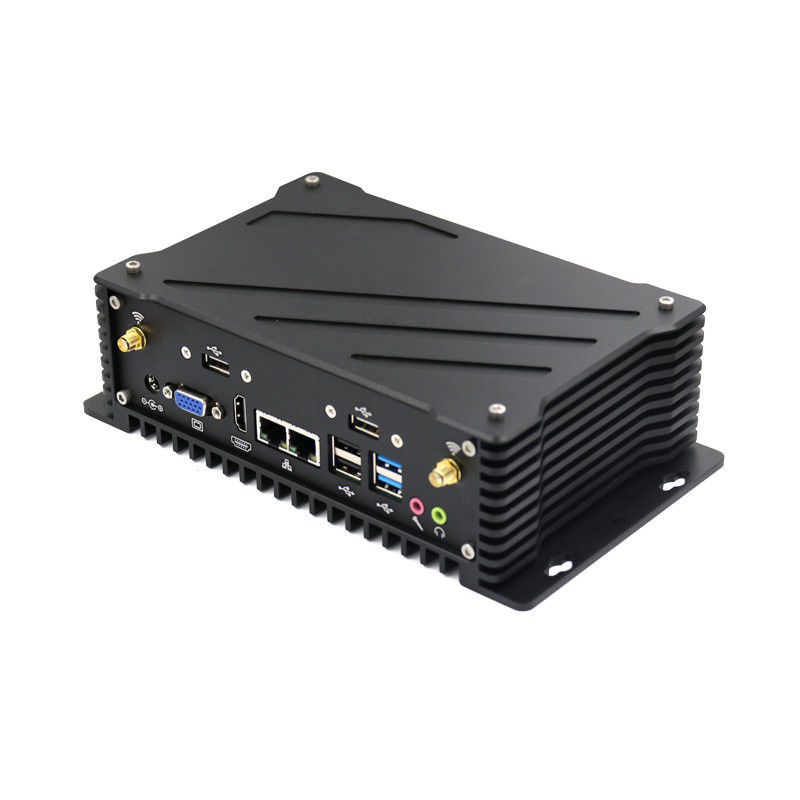

Low Power Fanless Industrial Mini PC 6 RS232 Remote Control Desktop Mini PC

Brand Name:	Sihovision
Model Number:	SM10-2
MOQ:	1 Piece
Price:	negotiable
Payment Terms:	T/T , Paypl , L/C , D/A , D/P , Western Union ,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Name:

Remote Desktop Mini Pc

CPU:

Intel Celeron J1900

Memory:

1*DDR3L SODIMM, Max 8GB

Storage:

1*MSATA,1*SATA3.0

Expand:

1*Mini-PCIe Half Card, 1*Mini-PCIe Full Card

Network:

2*Intel I211/i210

Highlight:

Remote Fanless Industrial Mini PC

diskless boot Industrial Mini PC

RS232 Desktop Mini PC

Product Description

Low Power Mini Pc 6 RS-232 Serial Ports Remote Desktop Mini PC -25 C To 70 C

Quick Details

Intel Celeron J1900 processor
1x DDR3L SODIMM, up to 8GB memory
6 RS-232 serial ports (2 of them support RS485/RS442)
2x Intel i210/i211 Gigabit LAN
One-key restore, watchdog, diskless boot
Low power fanless
Industrial grade working temperature -25℃~70℃

Specification

Feature


			CPU
			Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.4GHz, Fanless

			Memory
			1xDDR3L SODIMM, Max 8GB

			Storage
			1x MSATA

			1x HDD/SSD

			Display
			1x HDMI, 1x VGA

			Network
			2x GbE RJ45 Intel i211/i210

			I/O
			1x USB3.0, 5 x USB2.0, 2xLAN(GbE RJ45 Intel i211/i210), 6x COM (2 of them support RS485/RS442), 1x HDMI, 1xVGA, 10 x GPIO(Custom I/O), 1x Power Button, 1x3.5mm Jack, 1x Mic in, 2x Antenna port, be used for WIFI/3G/4G

			Expansion Slot
			1x Mini-PCIe half card, support WIFI Bluetooth

			1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth

			BIOS
			AMI EFI BIOS

			WDT
			Support hardware reset (256 level, 0-255 sec)

			Operation System
			Windows® 7/8/10,WES 7/10,LINUX


Power Supply

			External Power Supply
			AC 100 - 240V

			Working voltage
			DC 12V

			Power consumption
			≤15W

Operating Environment

			Material
			Aluminum Alloy

			Color
			Black

			Temperature Range
			Operating: -25 to 70°C, Storage: -30 to 80°C, surface air flow

			Relative humidity
			0%~95% , non-condensing

Packing Details

			Net weight
			1.2 kg

			Gross weight
			2.0 kg

			Product Dimension
			216 x 126 x 63.5 mm

			Packing size
			30*20*15cm

			Accessories
			Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws

Other

			Mounting (options)
			Wall mounting

			Desktop installation

			Warranty
			2 years warranty

FAQ

Q1.What is your lead time?
A1:Stock: 3-7 days in general.No stock:15-30 days after samples confirmed.Or please contact us by email for specific lead time base on your order quantities.

Q2. How does your factory do regarding quality control?
A2: Quality is priority.We always attach great importance to quality control from the very beginning to the end:
1) All raw material we used are non-toxicenvironmental-friendly;
2)Skillful workers pay great attention to each details in handling the producing and packing processes;
3) We have a professional QA/QC team to ensure the quality

Q3.What is the Minimum Order Quantity(MOQ)?
A3: MOQ 1 Set.

Q4. What are your terms of delivery?
A4: We can accept EXW.FOBCIFetc.You can choose one which is the most convenient for you.

Q5. What is the payment way?
A5:TT,Pay Later,West Union,Online Bank Payment.
