Sihovision 17 Inch Industrial Touchscreen Monitor Embedded Capacitive Touch

  • Sihovision 17 Inch Industrial Touchscreen Monitor Embedded Capacitive Touch
  • Sihovision 17 Inch Industrial Touchscreen Monitor Embedded Capacitive Touch
  • Sihovision 17 Inch Industrial Touchscreen Monitor Embedded Capacitive Touch
Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL17
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal
Product Details
Product Name PCAP Touch Monitor Panel Size 17"
Resolution 1280*1024 Brightness 300 Nits
Touchscreen Type Capacitive Touch Power DC 12V
High Light

Sihovision industrial Touchscreen Monitor

,

Embedded industrial Touchscreen Monitor

,

DC 12V embedded touch screen monitor
Leave a Message
Product Description

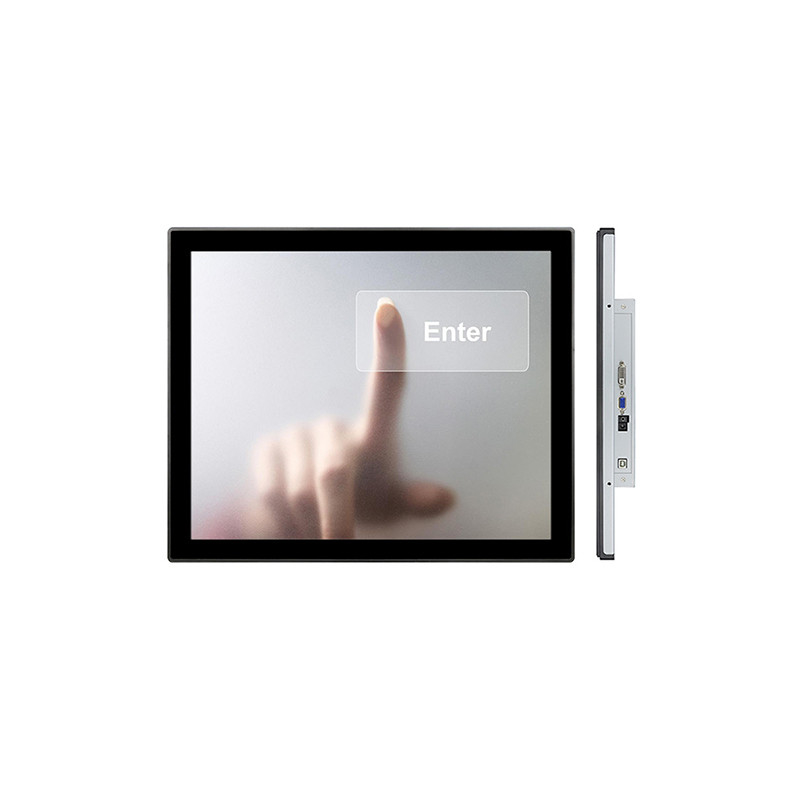

Sihovision 17 inch Embedded Aluminium Alloy Capacitive Touch Screen outdoor monitor industrial Touchscreen Monitor

Feature
1. Front bezel seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.
4. VGA+DVI interfaces, USB for touch.
5. Support wall mounting, open frame mounting, desk stand mouting, etc.



Specification

LCD panel
Panel size 17"
Resolution 1280*1024
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300+
Contrast ratio 1000:1
View angle 85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 Optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)


Signal Ports


VGA 1x VGA
DVI 1x DVI
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc.


Power Supply


External Power Supply AC 100-240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤20W
Enclosure
Material Plastic front bezel+Galvanized plate back
Color Black, White
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, Storage: -20 to 70°C
Relative humidity Operating: 10% to 80%, Storage: 5% to 90%



FAQ


Q: Does OEM and ODM service available for inustrial Touchscreen Monitor?
A: Yes, both OEM and ODM service are available, we have engineer working in the R&D dept, which able to offer variety customizing option case by case for customers.



Q: Product application ?
A: Adaptable for various application environment,suitable for Smart city; Smart education; Smart payment;Smart machine; Smart transportation; Artificial intelligence etc.



Q: What size of Panel PC available?
A: Regular size will be: 7",10.1, 15'', 15.6'',17'', 18.5'',19'', 21.5'', 23.6'', 27'', 32'' some of the size are in wide screen.



Q: Does logo allowing to be printed on the frame? Do you have MOQ?
A: Yes, logo can be printed on the frame, it will be free of charge if quantity upto 10 pcs.



Q: Are you a trading company or factory?
A: We are a professional industrial monitor/panel/android touch screen PC manufacturer started from 2012.
