Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC133A

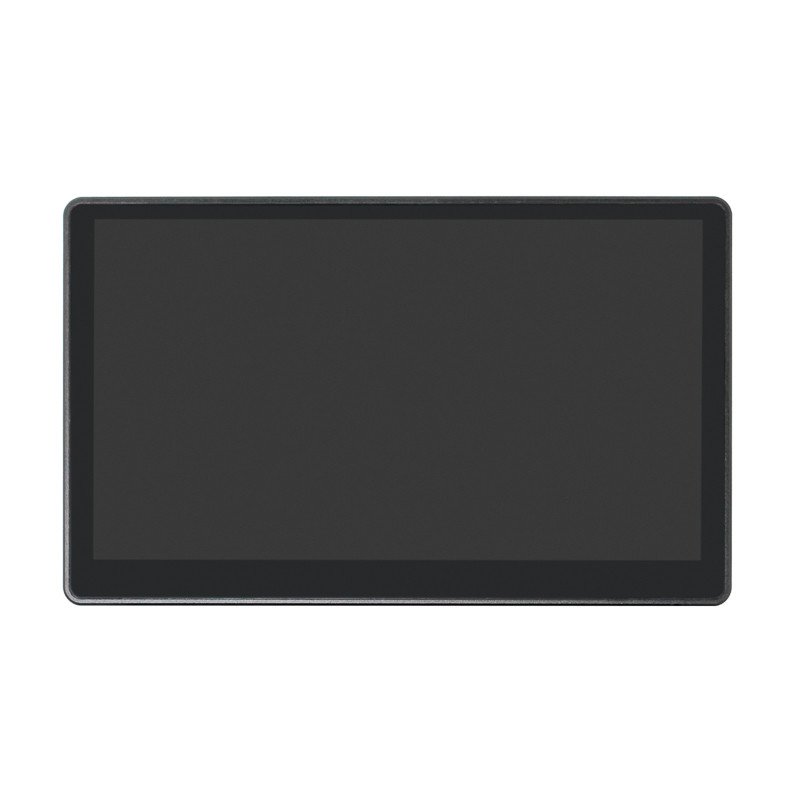

Fully Sealed IP65 Waterproof Android Computer RK3288 4G RAM High Performance Motherboard Industrial Android Panel PC
Features
1. Made of sturdy and durable aluminum Alloy front bezel+High strength cold rolled steel back case.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Fully sealed and fanless design, full IP65 waterproof, Sealed I/O with cable set included.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
5. Covered with 2mm Glass(anti cooling lubrication (spray) and oilmist), vandalproof.
6. High performance motherboard, fanless design, 7x24 continuous operation.
Specification
Model:SC133 | |
PC | |
CPU | RK3288 1.6GHz Quad core A17 AP |
Memory | 2G (4G, 8G optional) |
Hard Drive Capacity | 8GB |
Wireless Network | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
I/O Interface | 1xRJ45, 1xPOWER DC |
Operation System | Android 10.0, Ubuntu |
LCD panel | |
Panel size | 13.3" |
Resolution | 1920*1080 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits |
Response time | 5ms |
Contrast ratio | 800:1 |
View angle | 85°/85°/85°/85° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Touch Interface | USB (RS232 optional) |
Touch response time | 2ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working life | >50 million times |
Touch options | (5 wire resistive touch, IR touch optional) |
Power Supply | |
External Power Supply | AC 100-240V |
Working voltage | DC 12V |
Power consumption | ≤45W |
Enclosure | |
Material | Aluminum Alloy front bezel+High strength cold rolled steel back case |
Color | Silver, Black, white, color can be customized |
VESA mounting | 75x75mm/100x100mm |
IP grade | Full IP65 waterproof |
Competitive Advantage:
1.As a leader manufacturer since 2014, we have more than 8 years experience in such area;
2.All of our products are with strict QC testing to ensure high quality products for you;
3. With such a mass production, we can provide you the most competitive prices.
Certifications
About Shinho Electronic
Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
FAQ
1. What is your company's main product?
A:Our main product is touch monitor, panel pc, tablet pc, mini pc, advertising players.
2. Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
3. Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Western Union payment.
4. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
5. Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing.
