Portable Industrial Mini Computer Aluminum Alloy Shell Fanless Embedded Mini PC

Brand Name:	Sihovision
Model Number:	SM603
MOQ:	1 Piece
Price:	negotiable
Payment Terms:	T/T , Paypl , L/C , D/A , D/P , Western Union ,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Name:

Portable Mini Pc

CPU:

Core I3 10110U

Memory:

1xDDR4L SODIMM, Max 16GB

Storage:

1*MSATA,1*SATA3.0

Highlight:

i3 10110U Industrial Mini Computer

Fanless Industrial Mini Computer

Fanless Embedded Mini PC

Product Description

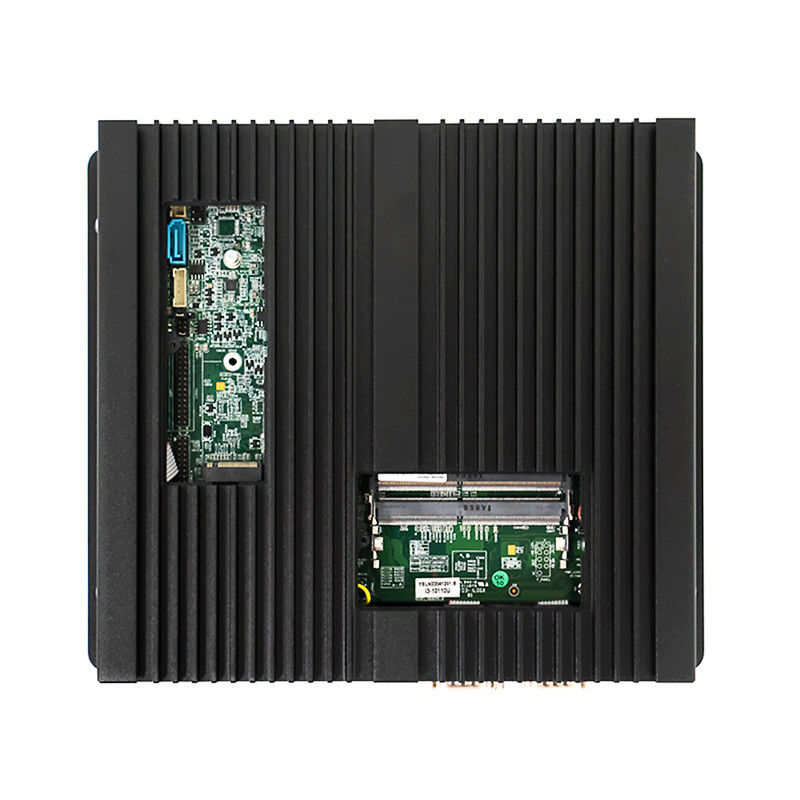

Portable Industrial Computer Aluminum Alloy Shell Mini PC Embedded Pc Fanless

Feature

1. Full Aluminum alloy enclosure, compact,fanless design, dustproof,excellent heat dissipation.
2. Wide operating temperature support (-20°C~70°C)
3. High performance motherboard, 7x24 continuous operation
4. Shock - proof.

Specification


			Model: SM603

			PC

			CPU
			CPU: Intel® Core i3 10110U, Dual Cores, Quad Threads, Base 2.1 GHz, Turbo 4.1 GHz, Fanless

			Memory
			1x DDR4L SODIMM slot, Max 16GB

			Storage
			1x MSATA

			1x HDD/SSD

			Graphics
			CPU Integrated graphics HD Graphics and support 1080p HD photo quality

			Network
			2×Realtek RTL 8111E Gigabit Ethernet controller

			Wireless Network
			WIFI + Bluetooth4.0 Optional

			I/O Ports
			2xUSB3.0, 4xUSB2.0, 2xCOM, 2xRJ45, 1x HDMI, 1x audio, 1x DC port

			HD support
			1080P

			Operation System
			Support Windows 10/11, Linux, Ubuntu, Debian etc.

			Power Supply

			External Power Supply
			AC 100 - 240V

			Working voltage
			DC 12 (9-36V DC Optional)

			Power consumption
			≤15W

			Enclosure

			Material
			Aluminum Alloy

			Color
			Black, Silver , white, color can be customized

			Operating Environment

			Temperature Range
			operating: -20 to 70°C, storage : -30 to 80°C

			Relative humidity
			20%~95% @ 40° C, non-condensing

			Vibration
			5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

			Packing Details

			Net weight
			1.95kg

			Gross weight
			3kg

			Product Dimension
			234*200*52mm

			Packing size
			43*38*19cm

			Accessories
			Power cable, mounting kits

			Other

			Mounting (options)
			Built-in mounting bracket

			wall/desking mounting brackets (optional)

			Warranty
			2 years warranty

FAQ

1.Q: What’s your OEM Service for my bulk order?

A: 1). Put your brand on the device housing by laser printing

2). Put your own label below the device housing;

3). Supply Warranty Card in the package for free;

4). Make the booting interface with your company logo or brand for free.

2.Q: What Operating System is installed before delivery?

A: Our computers support all kinds of main operating systems. Most buyers prefer Wins and Lin-ux. Unactivated Win 7 for testing is pre-installed.

3.Q: How long is the lead time?

A: General speaking, 1-3 days for samples, 7 working days for bulk order.

4.Q: What's your payment term?

A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & . For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.

5.Q: Can you arrange the shipment? Since it's my first time to buy from China.

A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Julien Dubois

France Apr 28.2025

Helpful (36)

On utilise ces PC comme serveurs edge dans nos entrepôts. La mémoire DDR5 de 64 Go est fantastique pour faire tourner plusieurs conteneurs Docker en local. Il est totalement silencieux et ne chauffe pas beaucoup. L'installation sur rail a été un jeu d'enfant. On va certainement en racheter pour nos autres sites.

Sophie Turner

United Kingdom Mar 20.2025

Helpful (82)

Slipped right into our server cabinet with the DIN-rail mount. We're using it to run a smart building management system, and the 64GB DDR5 RAM handles the massive data logs with zero lag. It’s compact, runs cool, and literally makes no noise. Spot on for what we needed! Will be back for more.

Marco Rossi

Italy Feb 26.2025

Helpful (25)

Ottimo mini PC per ambienti industriali. L'ho comprato per aggiornare il 'cervello' di una vecchia macchina CNC. Il processore i5-1235u è molto veloce e reattivo. Si adatta perfettamente al quadro elettrico grazie all'attacco per guida DIN. Consigliatissimo a chi ha bisogno di un'affidabilità solida 24 ore su 24.
