Self-Service Kiosk 7 Inch Waterproof Touch Monitor With High Brightness Display

Brand Name:	Sihovision
Model Number:	SL05W
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS

Product Name:

Sunlight Readable Touch Monitor

Panel Size:

5 Inch

Resolution:

800*480

Aspect Ratio:

16:10

Contrast Ratio:

800:1

Luminance:

1000cd/m², Sunlgiht Readable

Touch Type:

Resistive Touch

Signal Ports:

HDMI

IP Grade:

FULL IP65

Application:

Outdoor

Highlight:

7Inch Waterproof Touch Monitor

Self-Service Kiosk Waterproof Touch Monitor

Product Description

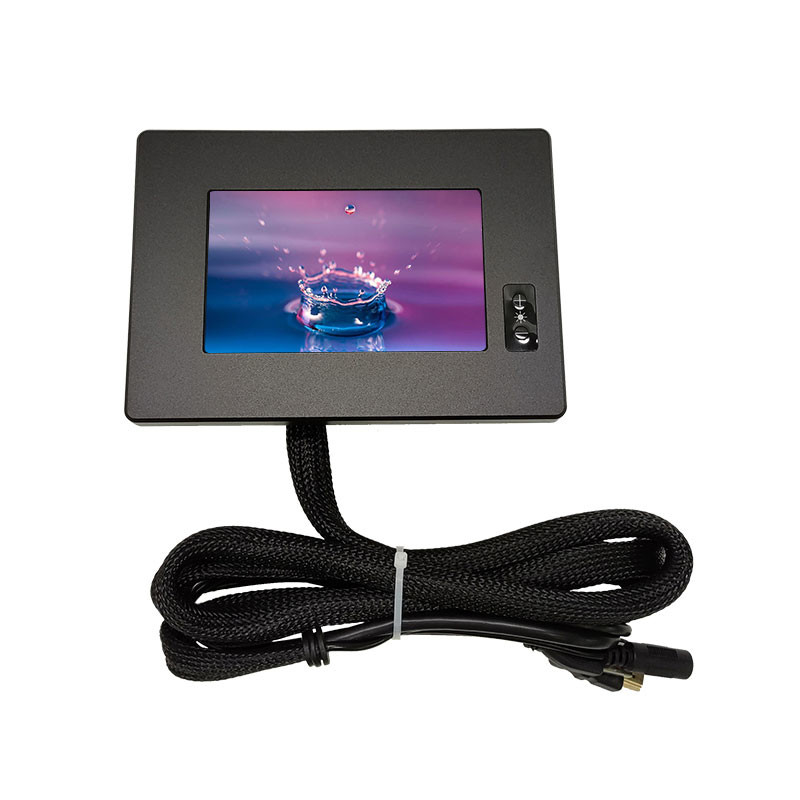

7 inch 1000 Nits Industrial Monitor Outdoor HDMI LCD Touch Screen

Features

1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , Full IP65 waterproof and dustproof.
2. Industrial LCD panel, full view angle, 1000nits sunlight readable, OSD diming brightness
3. HDMI, USB, DC in one cable.
4. EETI waterproof solution, the touch function can work well with drop water on the screen.
5.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
6. The front frame and the rear shell are sealed with waterproof tape, which can be disassembled for inspection and maintenance without affecting the waterproof performance.

Specification

LCD panel

Panel size	5"
Display active area	5寸:108(W)×64.8(H) mm / 4.252x2.551 in
Resolution	800*480
Aspect ratio	16:10
Brightness (cd/m²)	1000 nits sunlight readable
Brightness control	OSD
Contrast ratio	800:1
View angle	70°/70°/60°/70° (R/L/U/D)
Support Color	16.7M
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Resistive touch
Surface Hardness	3H
Surface treatment	Anti glare
Luminousness	≥80%
Touch controller IC	EETI ETR4000
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Air Bonding
Touch optional	Capacitive touch, IR touch optional

I/O Ports

Video input	1× IP65 HDMI
Touchscreen interface	1×IP65 USB
Power connector	1×IP65 9~36V DC
Power Supply
Working voltage	DC 9~36V
Power consumption	10W
Power adapter	AC 100 ~ 240V input and DC +12V@3.33A MAX output, 40W

Operating Environment

Temperature Range	Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F)
Relative humidity	Up to 100% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B

Other

Weight	Net weight 0.8kg (1.76 lb) Gross weight 1.8kg (3.96 lb)
Product Dimension	205mm125mm35mm (8.07×4.921×1.378 in )
Packing info	1pcs/ctn 24×21×11.5cm (9.44×8.26×4.52 in ) 1.8kg (3.968 lb) 10pcs/ctn 58×26×44cm (22.83×10.23×17.33 in ) 20kg (44.09 lb)
Accessories	Power adapter, power cord
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Advantages

1. Robust and durable Aluminum alloy front cover and metal rear cover

2. Industrial A LCD panel, high brightness 1000nits, sunlight readable

3. FULL IP65 water resistant

4. Adopt high precision industrial resistive touch screen, high precision, durable, anti-interference.

5. Support wide voltage: 12-24V DC input.

6. With waterproof speaker on the back case.

7. With button on the bezel, to adjust the brightness.

Applications

Restaurant

Self-service kiosk

Gas station

Payment terminal machine

Vehicle

Bus stop
