Place of Origin:
Shenzhen, China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SC07

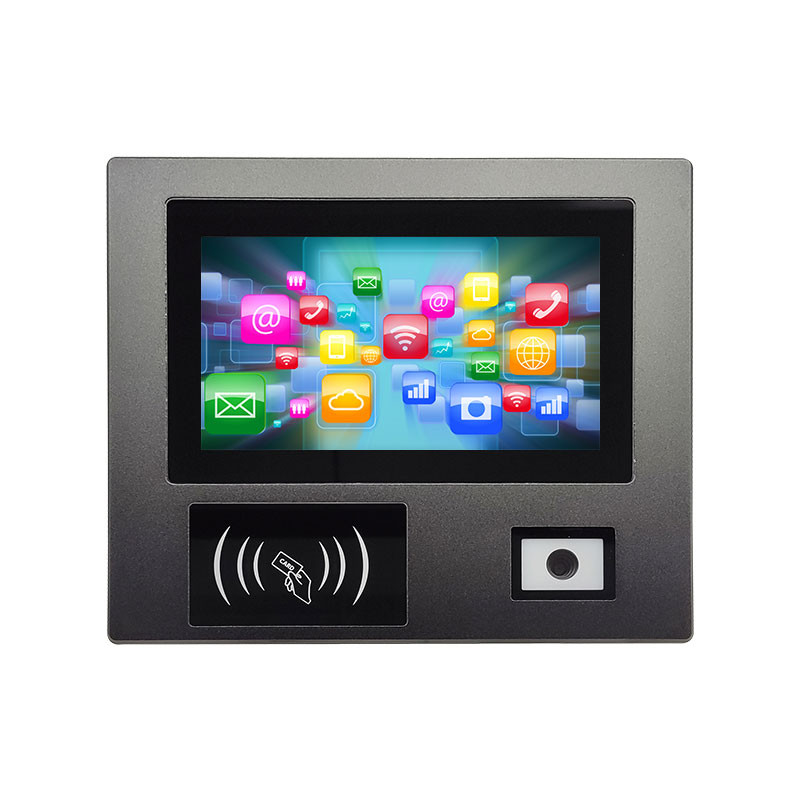

EETI Waterproof Solution 7 Inch RFID and QR Industrial Android Tablet PC with Resistive Touchscreen
Features
1. Aluminum alloy frame with sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof
2. Build in RFID with dual frequency 13.56MHz Mifare and 125KHz EM
3. Build QR code reader module
4.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H
5. Industrial grade LCD screen, full viewing angle
6. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
Specification
| PC | |
| CPU | RK3568 Quad-core 64-bit Cortex-A55 architecture, based on high-end 22nm process, Base 2.0GHz |
| Memory | 2G (4G/8G Optional) |
| Storage | eMMC 16G (32G/64G/128G Optional) |
| Graphics | Mali-G52 2EE |
| Operation System | Android 11 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Wireles | 2.4/5G WIFI and Bluetooth |
| Network Support | 3G, 4G , TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3,WMA,AAC,etc. |
| RTC Real Time Clock | YES |
| RFID | 13.56MHz Mifare and 125KHz EM |
| QR Code | yes |
LCD panel
| Panel size | 7" |
| Display active area | 157.21(W)x89.49(H) mm / 6.189x3.523 in |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 nits |
| Brightness control | PWM software adjustment |
| Contrast ratio | 900:1 |
| View angle | 80°/80°/70°/80° (R/L/U/D) |
| Backlight | WLED, 30K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface hardness | 7H |
| Surface treatment | N/A |
| Luminousness | 90% |
| Touch controller IC | ILITEK2510 |
| Available touch drivers | 7.1/8.1/9.0和Linux Buildroot/Debian 9/Ubuntu-18.04 |
| Touch bonding | Air bonding |
| Touch options | (5 wire resistive touch, non touch, IR touch optional) |
I/O Ports
| USB | 1x USB3.0, 1*OTG |
| COM | 2×RS232 |
| LAN | 1×RJ45 |
| Video Outputs | 1×HDMI |
| Audio | 1x 3.5mm Line-out |
| Power input | 1× 12V DC jack |
| Other | 1× Sim card slot, 1x TF card slot, 1×WIFI antenna jack male |
Operating Environment
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
Power Supply
| Working voltage | DC 12V |
| Power consumption | 12W |
| Power adapter | AC 100 ~ 240V input and DC +12V@3.3A MAX output, 36W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75mm |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
Other
| Product weight | Net weight 1.8kg Gross weight 2.6kg |
| Product dimension | 228×196.7×55mm |
| Packing info | 1pcs/ctn 36×32×11cm 2.6kg 5pcs/ctn 53×36×33cm 13kg |
| Accessories | Power cord, adapter, antenna, embedded mount screws |
| Warranty | 1 year |
| Certificate | CE, FCC, RoHS |
Product picture
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
