Place of Origin:
Shenzhen, China
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SL13
Video
Video

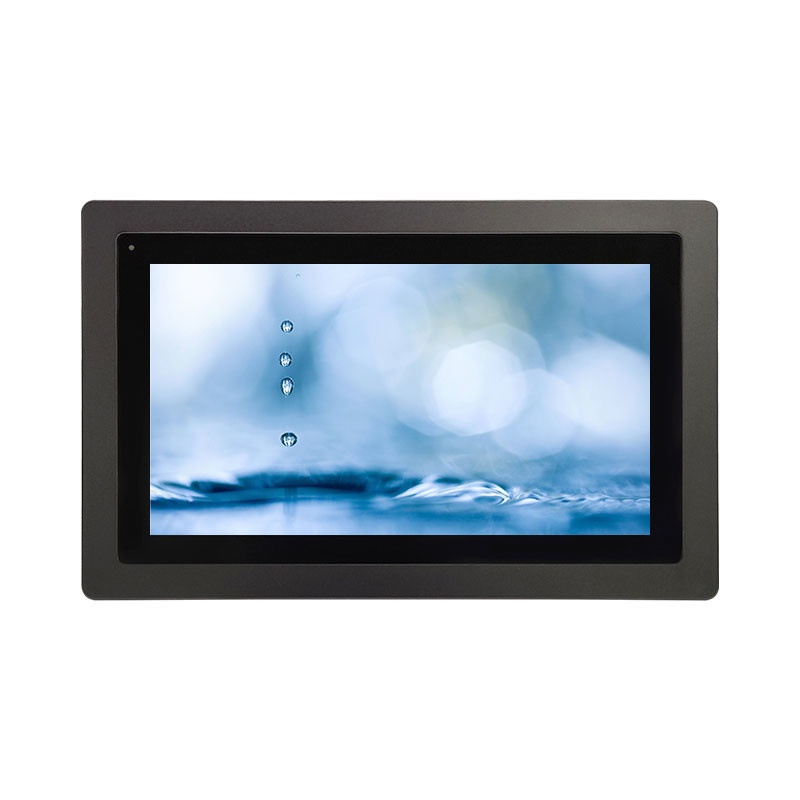

Optical Bonding Technology 13.3 inch Waterproof IP67 Monitor for Enhanced Scratch Resistance
Features
1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , Full IP67 waterproof and dustproof, Waterproof connector
2. Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming brightness
3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment
4.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)
5. Optical bonding between touch screen and LCD
6. Use industrial-grade components, work 24/7, and support wide temperature operation -20℃~70℃
Specification
LCD panel
| Panel size | 13.3" |
| Display active area | 293.76(W)x165.24(H) mm / 11.565x6.506 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touchscreen Type | No touch |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥80% |
| Touch bonding | Optical bonding |
| Touch optional | 10 points capacitive touch, Resistive touch, IR touch Optional |
I/O Ports
| Video input | 1*IP67 HDMI |
| Power connector | 1*IP67 DC 9-36V |
| Working voltage | DC 9-36V |
| Power consumption | 25W |
| Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |
Enclosure
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, others optional |
| Mounting | VESA mount 75/100mm, Panel mount |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
Operating Environment
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
Other
| Product weight | Net weight 3.5kg Gross weight 6kg |
| Product Dimension | 371×264×55mm |
| Packing info | 1pcs/ctn 42×16×42cm 6kg 2pcs/ctn 42×30×42cm 12kg |
| Accessories | Power plug, Waterproof Power supply, Waterproof HDMI cable |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Advantages
1. Robust and durable Aluminum alloy front cover and metal rear cover
2. Industrial A LCD panel, high brightness 1000nits, sunlight readable
3. FULL IP67 water resistant
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
