Brand Name:	Sihovision
Model Number:	SM117
MOQ:	1 piece
Price:	Negotiable
Packaging Details:	Packing size 282515cm
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE, FCC, RoHS

Product Name:

Box PC

CPU:

Intel N97

Operation System:

Windows 10

Memory:

8G DDR4

Storage:

128G SSD

Material:

Aluminum Alloy

Working Voltage:

DC 12-24V

Warranty:

12months

Highlight:

fanless industrial mini pc

Intel N97 industrial PC

Gigabit Ethernet industrial computer

Product Description

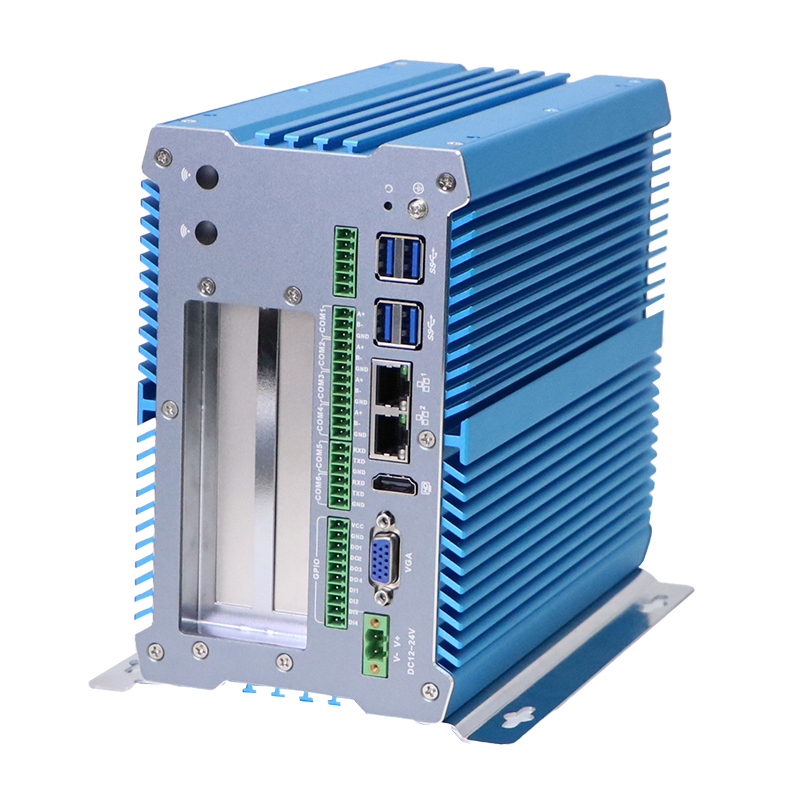

Embedded Fanless Industrial PCs Intel N97 DDR4 2 LAN Intel I210AT Gigabit Ethernet

The all-aluminum construction and fanless design make it well-suited for harsh industrial environments where dust, vibration, and temperature variations are concerns

Multiple processor options (Intel N97 through 12th Gen Core i7) provide flexibility for different performance needs

Extensive connectivity with 6 COM ports and 8 isolated GPIOs is ideal for industrial automation and control applications

Wide voltage input range (12-24V DC) with reverse polarity protection adds reliability

Good expansion options with PCIe slots and Mini PCIe slots

Specification

Model: SM117
PC
CPU	Intel N97 (4 cores, 4 threads, 6MB cache, turbo frequency up to 3.6 GHz), Fanless Intel i5-1035G1 (4 cores, 8 threads, 6MB cache, turbo frequency up to 3.6 GHz), Fanless Intel i5-1235U (10 cores, 12 threads, 12MB cache, turbo frequency up to 4.4 GHz), Fanless Intel i7-1255U (10 cores, 12 threads, 12MB cache, turbo frequency up to 4.7 GHz), Fanless
Memory	Support 1*DDR4 3200 SODIMM, max 32GB
Display chip	Integrated Intel® UHD Graphics /Intel® Iris® Xe Graphics eligible core graphics card
Display	1x VGA, 1 HDMI (Support synchronous and asynchronous dual display)
Storage	1x M.2 slot (SATA protocol), 1x 2.5-inch hard drive expansion slot
Display	1x VGA, 1 HDMI built-in header
Network	N97: 2x Intel i210AT Gigabit Ethernet ports 1035G1/1235U/1255U: 1x Intel i210-AT, 1x i219-V Gigabit Ethernet port
Front I/O	2x USB2.0, 1x power switch, 4P Phoenix terminal (remote switch), 1x 2.5-inch drawer-type hard drive expansion slot
Rear I/O	4x USB 3.0 (3 on the N97, 1 USB 2.0), 2x LAN, 1x VGA, 1x HDMI, 1x 2-pin Phoenix power connector, 1x clear COM button, 6x COM ports (COM1 to COM4 is 485 mode, COM5 to COM6 is 232 mode), 10-pin Phoenix connector with 4 input and 4 output GPIO (with optocoupler isolation, supports 9-24V wide voltage range), 6-pin Phoenix connector (customizable pins)
Expansion port	Supports 1x M.2 2280 M-key slot (SATA protocol) Supports 1x Mini PCIE slot (supports 3G/4G, Core (supports PCIE and USB signals, N97 only USB signals), with a SIM card holder Supports 1x Mini PCIE slot (supports Wi-Fi/Bluetooth, supports PCIE and USB signals) Optional interfaces (not included in standard shipment): audio jack, expandable 4-input 4-output GPIO
Expansion slots	1 PCIE X8 slot (N97 1X, 1035G1/1235U/1255U 4X) + 1 PCI slot (32-bit)
BIOS	AMI EFI BIOS
WDT	Support hardware reset (256 level, 0-255 sec)
Operation System	Support Windows 10/11, Linux, Ubuntu, Debian etc.
Other	Power on, scheduled startup, network wake-up, PXE boot, watchdog (0-255 levels)
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12-24V
Power consumption	≤30W
Enclosure
Material	Aluminum Alloy
Color	Blue, color can be customized for bulk orders.
Operating Environment
Temperature Range	operating: -10 to 50°C, storage: -10 to 60°C
Relative humidity	0%~95% , non-condensing
Packing Details
Net weight	4kg
Gross weight	5kg
Product Dimension	216 * 185 * 115 mm
Packing size	282515cm
Accessories	Power adapter, Power plug, Wall mount bracket, user manual, warranty card
Other
Mounting (options)	Embedded mount
Mounting (options)	wall mounting brackets (optional)
Warranty	3 years warranty

Package

Certifications
Embedded Fanless Industrial PCs Intel N97 DDR4 2 LAN Intel I210AT Gigabit Ethernet 1

OEM & ODM

About Shinho Electronic

Application

Typical Applications:

Industrial automation and control systems

Edge computing applications

Digital signage and kiosk systems

Transportation systems

Manufacturing equipment integration
